NVH4L025N065SC1 Sanyo Semiconductor/onsemi Discrete Semiconductor Products distributor and supplier

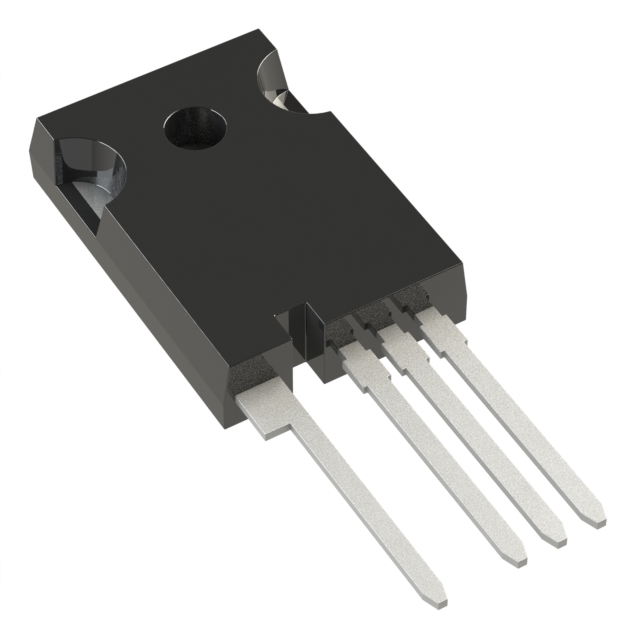

Same model may have multiple batches, images only for reference.

NVH4L025N065SC1
Manufacturer No:	NVH4L025N065SC1
Manufacturer:	Sanyo Semiconductor/onsemi
SUVSysrem No:	NVH4L025N065SC1
Package:	Tube
Datasheet:	NVH4L025N065SC1
Description:	N-Channel 650 V 99A (Tc) 348W (Tc) Through Hole TO-247-4L
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

NVH4L025N065SC1 information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Sanyo Semiconductor/onsemi
Package	Tube
Description	N-Channel 650 V 99A (Tc) 348W (Tc) Through Hole TO-247-4L
Package / Case	TO-247-4
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 175°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	99A (Tc)
Rds On (Max) @ Id, Vgs	28.5mOhm @ 45A, 18V
Power Dissipation (Max)	348W (Tc)
Vgs(th) (Max) @ Id	4.3V @ 15.5mA
Supplier Device Package	TO-247-4L
Grade	Automotive
Drive Voltage (Max Rds On, Min Rds On)	15V, 18V
Vgs (Max)	+22V, -8V
Drain to Source Voltage (Vdss)	650 V
Gate Charge (Qg) (Max) @ Vgs	164 nC @ 18 V
Input Capacitance (Ciss) (Max) @ Vds	3480 pF @ 325 V
Qualification	AEC-Q101

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
