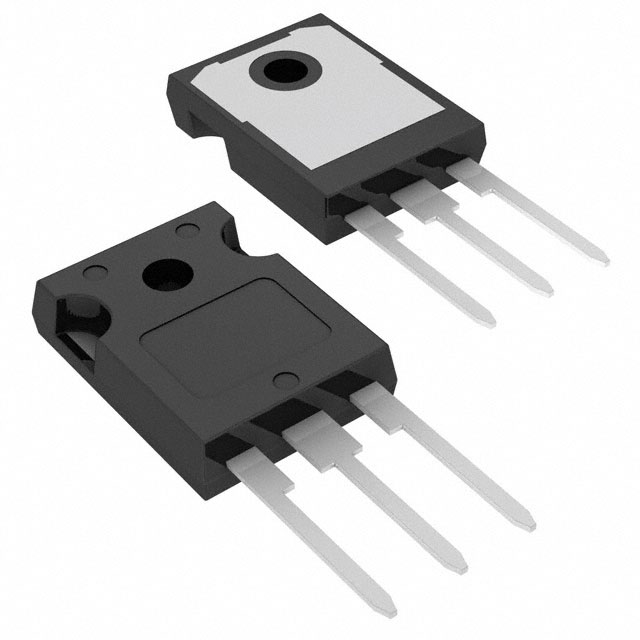

Same model may have multiple batches, images only for reference.

NVHL015N065SC1
Manufacturer No:	NVHL015N065SC1
Manufacturer:	Sanyo Semiconductor/onsemi
SUVSysrem No:	NVHL015N065SC1
Package:	Tube
Datasheet:	NVHL015N065SC1
Description:	N-Channel 650 V 163A (Tc) 643W (Tc) Through Hole TO-247-3
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

NVHL015N065SC1 information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Sanyo Semiconductor/onsemi
Package	Tube
Description	N-Channel 650 V 163A (Tc) 643W (Tc) Through Hole TO-247-3
Package / Case	TO-247-3
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 175°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	163A (Tc)
Rds On (Max) @ Id, Vgs	18mOhm @ 75A, 12V
Power Dissipation (Max)	643W (Tc)
Vgs(th) (Max) @ Id	4.3V @ 25mA
Supplier Device Package	TO-247-3
Grade	Automotive
Drive Voltage (Max Rds On, Min Rds On)	15V, 18V
Vgs (Max)	+22V, -8V
Drain to Source Voltage (Vdss)	650 V
Gate Charge (Qg) (Max) @ Vgs	283 nC @ 18 V
Input Capacitance (Ciss) (Max) @ Vds	4790 pF @ 325 V
Qualification	AEC-Q101
