MEA-5000-AM/100-00228-01 Maxtena RF and Wireless distributor and supplier

Same model may have multiple batches, images only for reference.

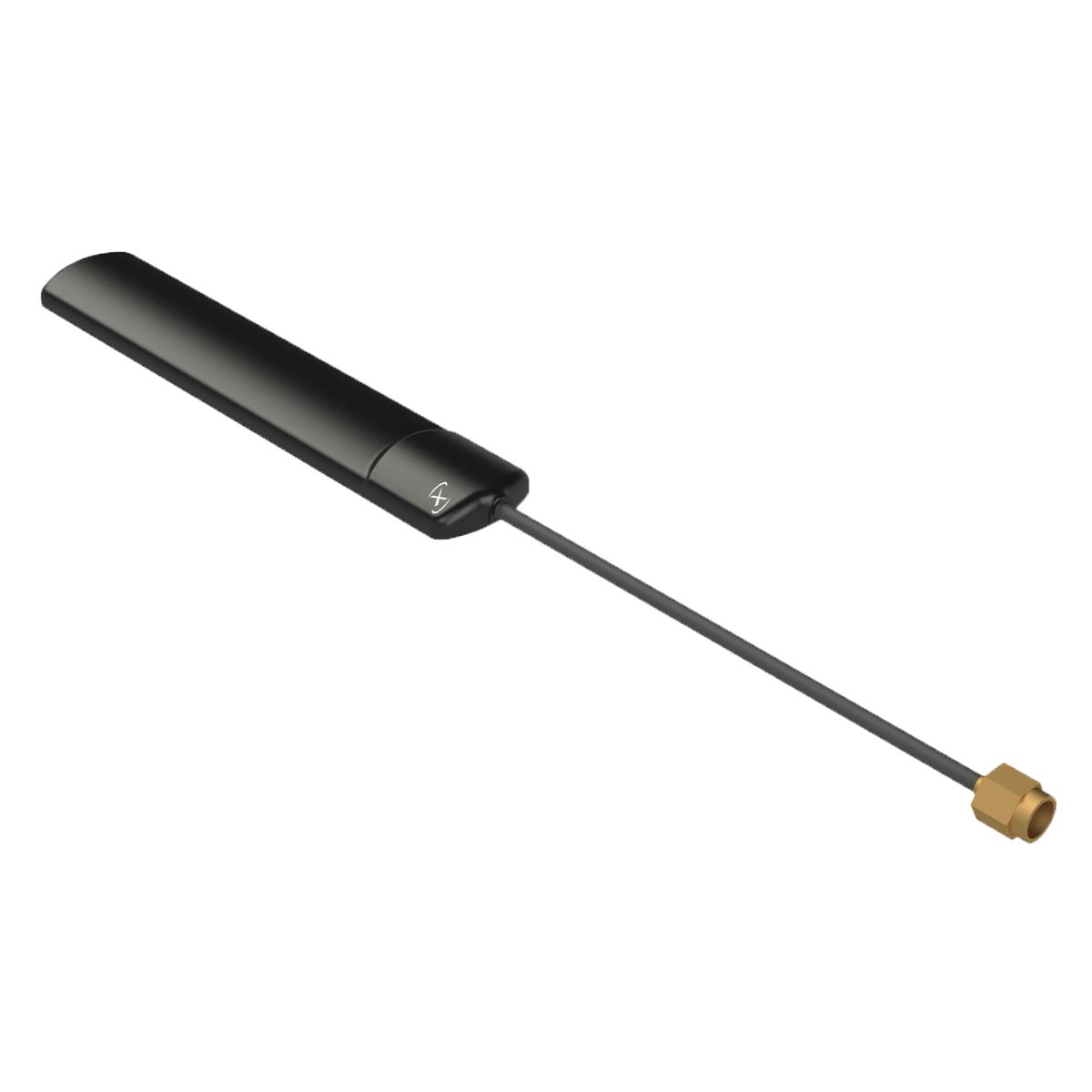

MEA-5000-AM/100-00228-01
Manufacturer No:	MEA-5000-AM/100-00228-01
Manufacturer:	Maxtena
SUVSysrem No:	MEA-5000-AM/100-00228-01
Package:	Tape & Box (TB)
Datasheet:	MEA-5000-AM/100-00228-01
Description:	788.5MHz, 2.059GHz, 4.15GHz, 5.537GHz 2G, 3G, 4G, 5G Module RF Antenna 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz 3.2dBi, 3.6dBi, 1dBi, 1.6dBi SMA Male Adhesive
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

MEA-5000-AM/100-00228-01 information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	Maxtena
Package	Tape & Box (TB)
Description	788.5MHz, 2.059GHz, 4.15GHz, 5.537GHz 2G, 3G, 4G, 5G Module RF Antenna 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz 3.2dBi, 3.6dBi, 1dBi, 1.6dBi SMA Male Adhesive
Features	Cable - 3m
Mounting Type	Adhesive
Frequency Range	617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Applications	2G, 3G, 4G, 5G
Gain	3.2dBi, 3.6dBi, 1dBi, 1.6dBi
Termination	SMA Male
Number of Bands	4
VSWR	1.5, 1.7, 1.8
Antenna Type	Module
Height (Max)	0.197" (5.00mm)
Return Loss	-15.6dB, -15.3dB, -12.8dB, -12.1dB
Frequency Group	Wide Band
Frequency (Center/Band)	788.5MHz, 2.059GHz, 4.15GHz, 5.537GHz
RF Family/Standard	Cellular
Power - Max	35 W

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
