| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
Maxtena |
| Package |
Tape & Box (TB) |
| Description |

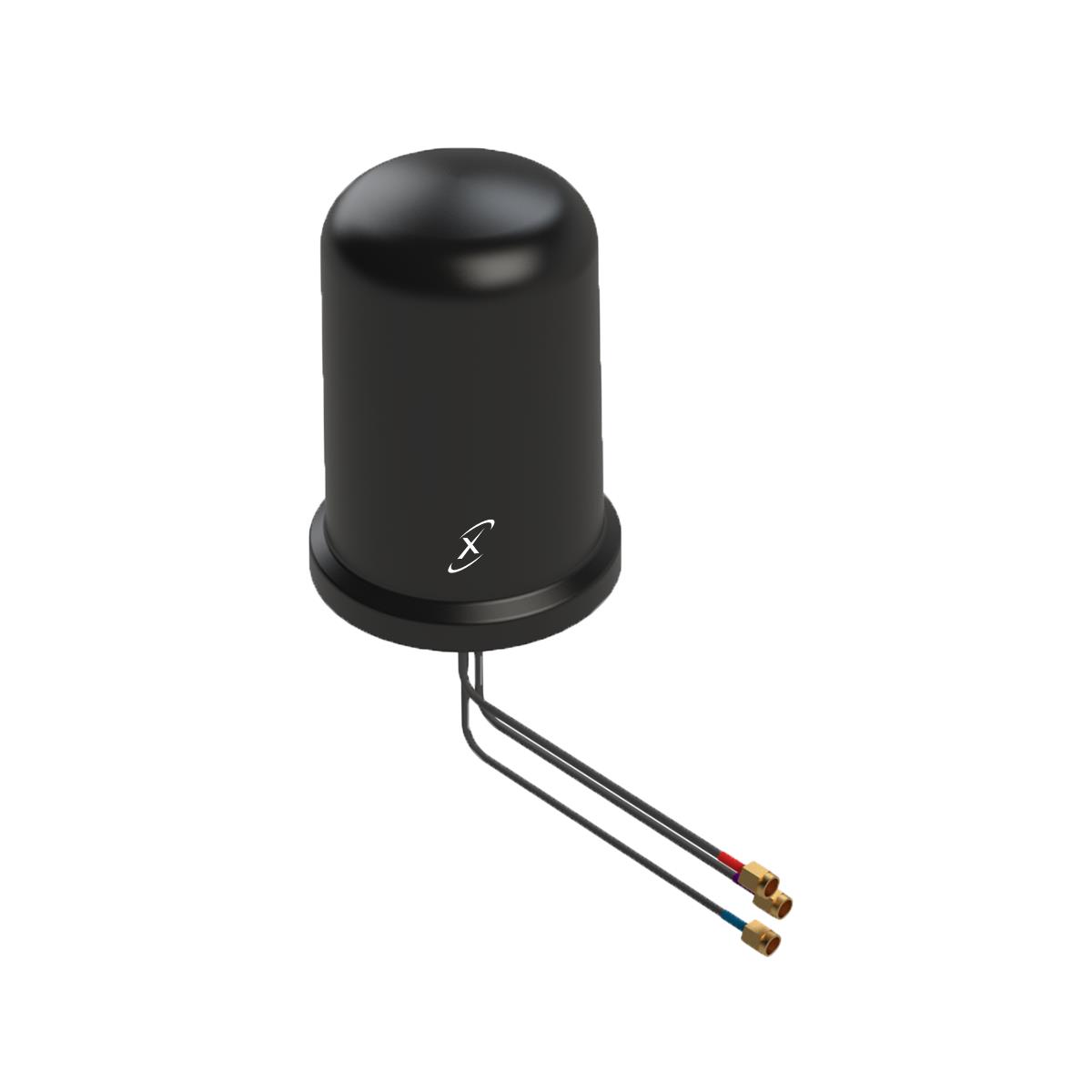

425MHz, 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.6GHz 2G, 3G, 4G, 5G, Galileo, GLONASS, GNSS, GPS, IoT, LTE, QZSS Dome RF Antenna 380MHz ~ 470MHz, 698MHz ~ 960MHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz 2.1dBi, 1.9dBi, 28dBi, 28dBi, 3dBi, 2.9dBi SMA Male Screw |
| Features | Cable - 2m, Filter |
| Mounting Type | Screw |
| Frequency Range | 380MHz ~ 470MHz, 698MHz ~ 960MHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz |
| Applications | 2G, 3G, 4G, 5G, Galileo, GLONASS, GNSS, GPS, IoT, LTE, QZSS |
| Gain | 2.1dBi, 1.9dBi, 28dBi, 28dBi, 3dBi, 2.9dBi |
| Termination | SMA Male |
| Ingress Protection | IP67, IP69 |
| Number of Bands | 6 |
| VSWR | 1.5, 1.9, 2, 3 |
| Antenna Type | Dome |
| Height (Max) | 5.118" (130.00mm) |
| Return Loss | -16.6dB, -10.6dB, -10.3dB, -6.1dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 425MHz, 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.6GHz |
| RF Family/Standard | Cellular, Navigation |
| Power - Max | 25 W |
