GSFT4R010 Good Ark Semiconductor Discrete Semiconductor Products distributor and supplier

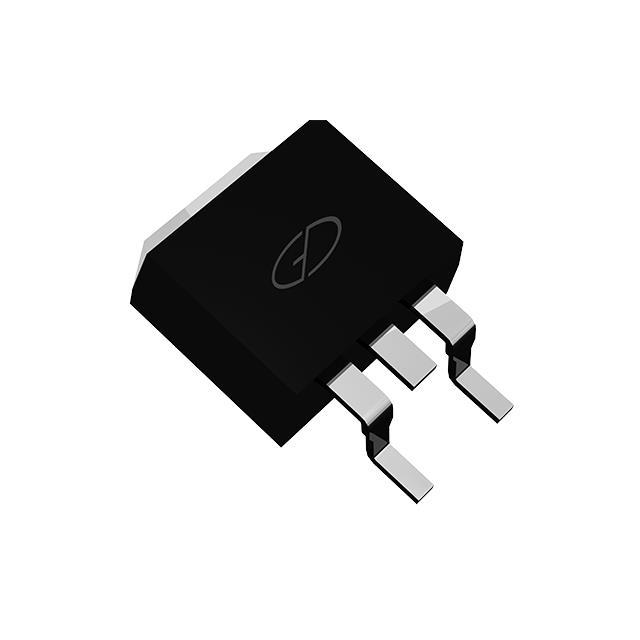

Same model may have multiple batches, images only for reference.

GSFT4R010
Manufacturer No:	GSFT4R010
Manufacturer:	Good Ark Semiconductor
SUVSysrem No:	GSFT4R010
Package:	Tape & Reel (TR)
Datasheet:	GSFT4R010
Description:	N-Channel 100 V 120A (Ta) 208W (Ta) Surface Mount TO-263 (D2PAK)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

GSFT4R010 information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Good Ark Semiconductor
Package	Tape & Reel (TR)
Description	N-Channel 100 V 120A (Ta) 208W (Ta) Surface Mount TO-263 (D2PAK)
Package / Case	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	120A (Ta)
Rds On (Max) @ Id, Vgs	4mOhm @ 50A, 10V
Power Dissipation (Max)	208W (Ta)
Vgs(th) (Max) @ Id	3.9V @ 250µA
Supplier Device Package	TO-263 (D2PAK)
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	100 V
Gate Charge (Qg) (Max) @ Vgs	140 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	8200 pF @ 50 V
