GSJU6520 Good Ark Semiconductor Discrete Semiconductor Products distributor and supplier

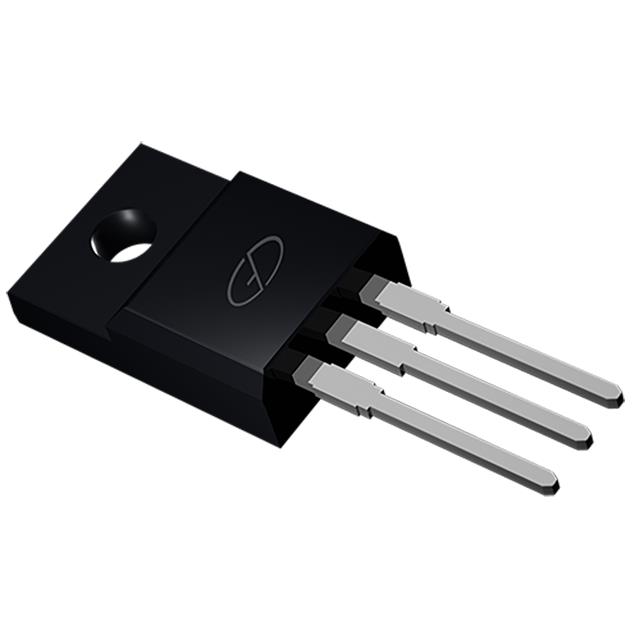

Same model may have multiple batches, images only for reference.

GSJU6520
Manufacturer No:	GSJU6520
Manufacturer:	Good Ark Semiconductor
SUVSysrem No:	GSJU6520
Package:	Tube
Datasheet:	GSJU6520
Description:	N-Channel 650 V 20A (Tc) 40W (Tc) Through Hole TO-220F
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

GSJU6520 information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Good Ark Semiconductor
Package	Tube
Description	N-Channel 650 V 20A (Tc) 40W (Tc) Through Hole TO-220F
Package / Case	TO-220-3 Full Pack
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Rds On (Max) @ Id, Vgs	220mOhm @ 10A, 10V
Power Dissipation (Max)	40W (Tc)
Vgs(th) (Max) @ Id	4V @ 250µA
Supplier Device Package	TO-220F
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs (Max)	±30V
Drain to Source Voltage (Vdss)	650 V
Gate Charge (Qg) (Max) @ Vgs	48 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	1718 pF @ 100 V
