AWD 127/66/Z-T ASSMANN WSW Components Connectors, Interconnects distributor and supplier

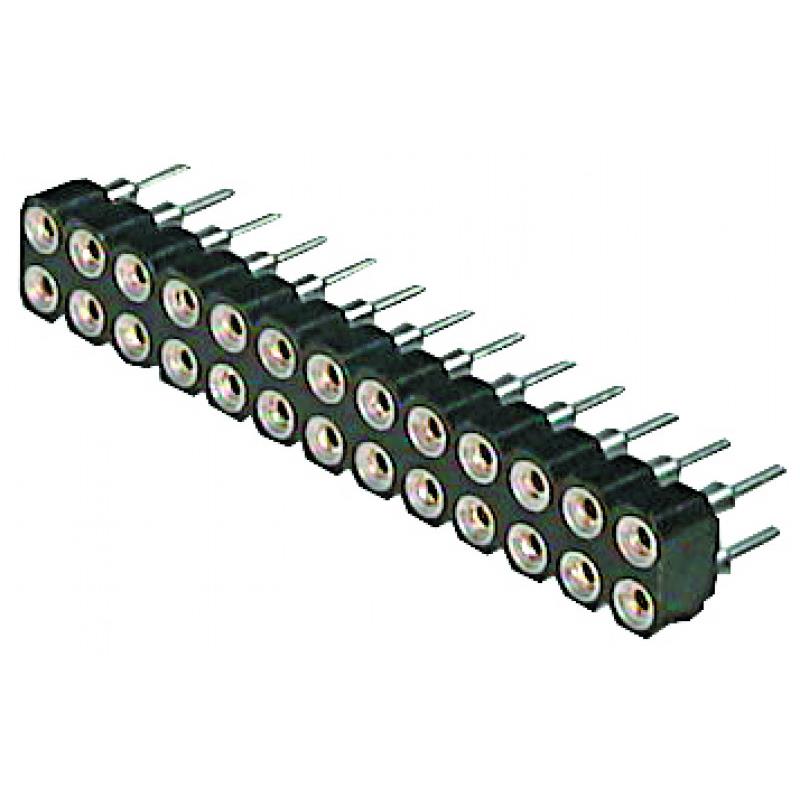

Same model may have multiple batches, images only for reference.

AWD 127/66/Z-T
Manufacturer No:	AWD 127/66/Z-T
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	AWD 127/66/Z-T
Package:	Bag
Datasheet:	AWD 127/66/Z-T
Description:	66 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

AWD 127/66/Z-T information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Bag
Description	66 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Connector Type	Header
Voltage Rating	100VAC, 150VDC
Current Rating (Amps)	3A per Contact
Mounting Type	Through Hole
Number of Positions	66
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Female Socket
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Beryllium Copper
Insulation Color	Black
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200.0µin (5.08µm)
Contact Shape	Circular
Contact Length - Post	0.110" (2.79mm)
Insulation Height	0.118" (3.00mm)
Insulation Material	Polyphenylene Sulfide (PPS)
Row Spacing - Mating	0.100" (2.54mm)
Number of Rows	2
