A-BL254-DG-Z10D ASSMANN WSW Components Connectors, Interconnects distributor and supplier

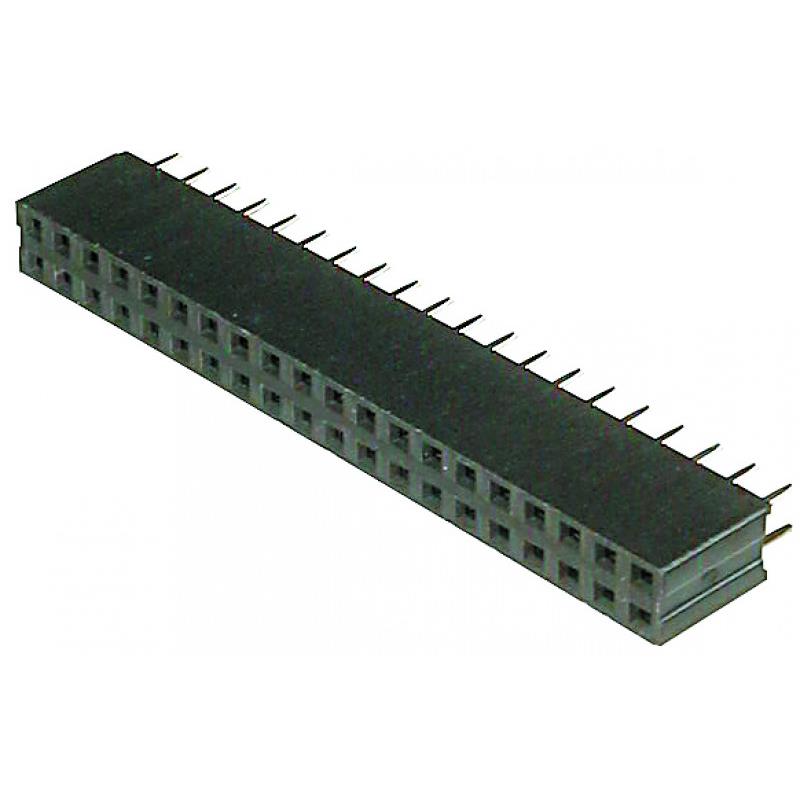

Same model may have multiple batches, images only for reference.

A-BL254-DG-Z10D
Manufacturer No:	A-BL254-DG-Z10D
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	A-BL254-DG-Z10D
Package:	Tray
Datasheet:	A-BL254-DG-Z10D
Description:	10 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

A-BL254-DG-Z10D information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Tray
Description	10 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Connector Type	Header
Current Rating (Amps)	3A per Contact
Mounting Type	Through Hole
Number of Positions	10
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Forked
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Black
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Shape	Square
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.335" (8.50mm)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating	0.100" (2.54mm)
Number of Rows	2

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
