A-BL200DA72-049-KSR1 ASSMANN WSW Components Connectors, Interconnects distributor and supplier

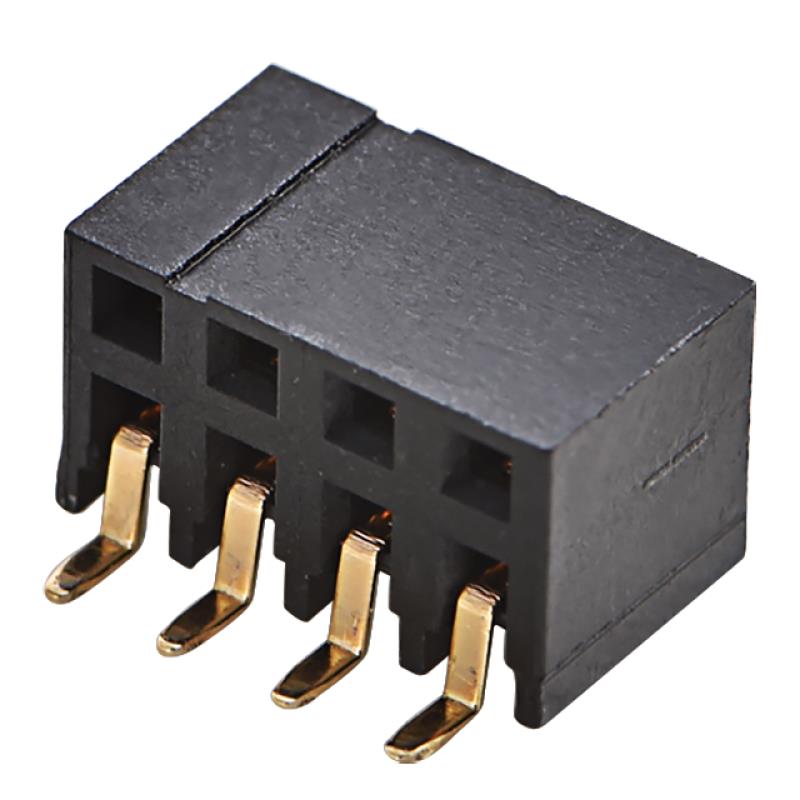

Same model may have multiple batches, images only for reference.

A-BL200DA72-049-KSR1
Manufacturer No:	A-BL200DA72-049-KSR1
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	A-BL200DA72-049-KSR1
Package:	Tape & Reel (TR)
Datasheet:	A-BL200DA72-049-KSR1
Description:	72 Position Header Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

A-BL200DA72-049-KSR1 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Tape & Reel (TR)
Description	72 Position Header Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
Connector Type	Header
Current Rating (Amps)	1.5A per Contact
Mounting Type	Surface Mount, Right Angle
Number of Positions	72
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Female Socket
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Insulation Color	Black
Pitch - Mating	0.079" (2.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Shape	Rectangular
Insulation Height	0.193" (4.90mm)
Insulation Material	Polyamide (PA6T), Nylon 6T, Glass Filled
Row Spacing - Mating	0.079" (2.00mm)
Number of Rows	2

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
