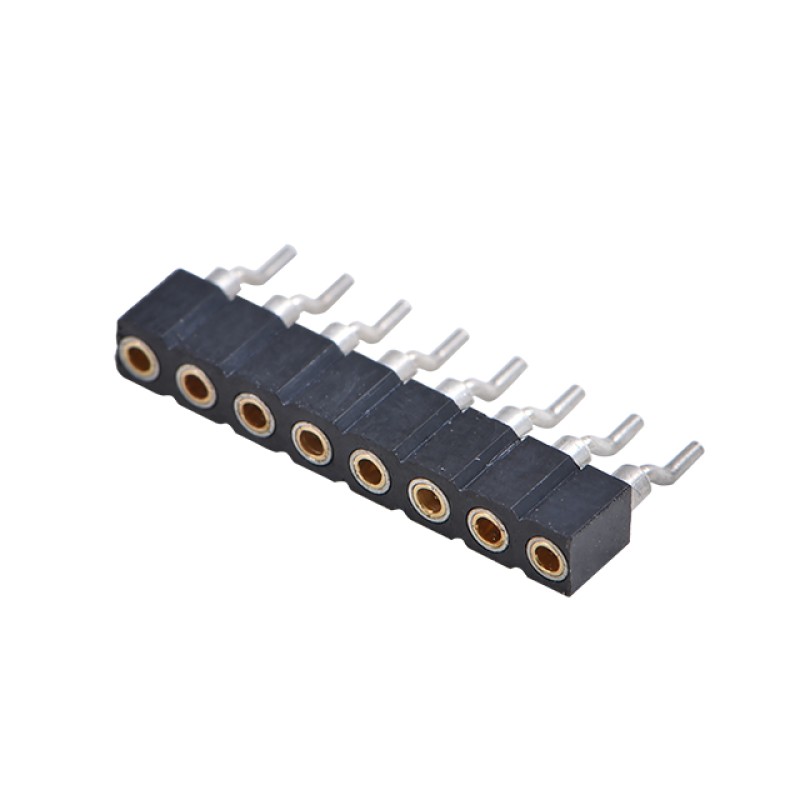

Same model may have multiple batches, images only for reference.

A-BL200EA21-028-GSR1
Manufacturer No:	A-BL200EA21-028-GSR1
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	A-BL200EA21-028-GSR1
Package:	Tape & Reel (TR)
Datasheet:	A-BL200EA21-028-GSR1
Description:	21 Position Header Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

A-BL200EA21-028-GSR1 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Tape & Reel (TR)
Description	21 Position Header Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
Connector Type	Header
Current Rating (Amps)	3A per Contact
Mounting Type	Surface Mount, Right Angle
Number of Positions	21
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Female Socket
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Beryllium Copper
Insulation Color	Black
Pitch - Mating	0.079" (2.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Finish Thickness - Post	15.0µin (0.38µm)
Contact Shape	Circular
Insulation Height	0.087" (2.20mm)
Insulation Material	Polyphenylene Sulfide (PPS)
Number of Rows	1
