ZXMP10A18KQTC Zetex Semiconductors (Diodes Inc.) Discrete Semiconductor Products distributor and supplier

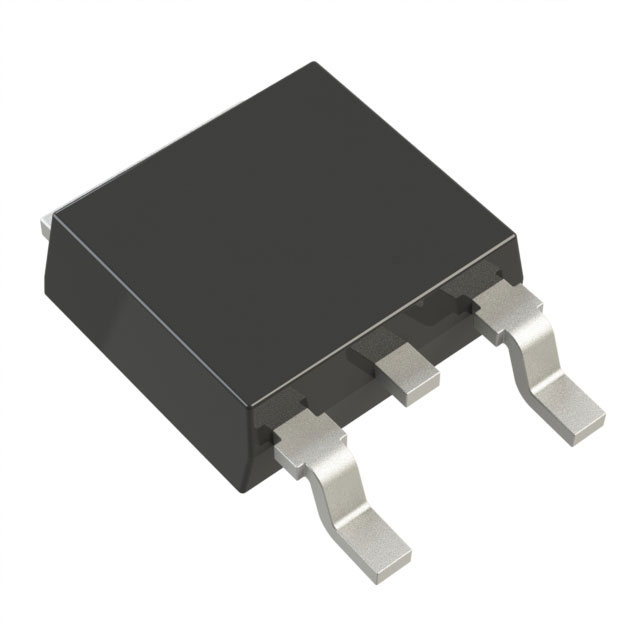

Same model may have multiple batches, images only for reference.

ZXMP10A18KQTC
Manufacturer No:	ZXMP10A18KQTC
Manufacturer:	Zetex Semiconductors (Diodes Inc.)
SUVSysrem No:	ZXMP10A18KQTC
Package:	Tape & Reel (TR)
Datasheet:	ZXMP10A18KQTC
Description:	P-Channel 100 V 15A (Tc) 71W (Ta) Surface Mount TO-252 (DPAK)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

ZXMP10A18KQTC information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Package	Tape & Reel (TR)
Description	P-Channel 100 V 15A (Tc) 71W (Ta) Surface Mount TO-252 (DPAK)
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	P-Channel
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Rds On (Max) @ Id, Vgs	150mOhm @ 2.8A, 10V
Power Dissipation (Max)	71W (Ta)
Vgs(th) (Max) @ Id	4V @ 250µA
Supplier Device Package	TO-252 (DPAK)
Grade	Automotive
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	100 V
Gate Charge (Qg) (Max) @ Vgs	26.9 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	1055 pF @ 50 V
Qualification	AEC-Q101
