8000078326 Weidmuller Connectors, Interconnects distributor and supplier

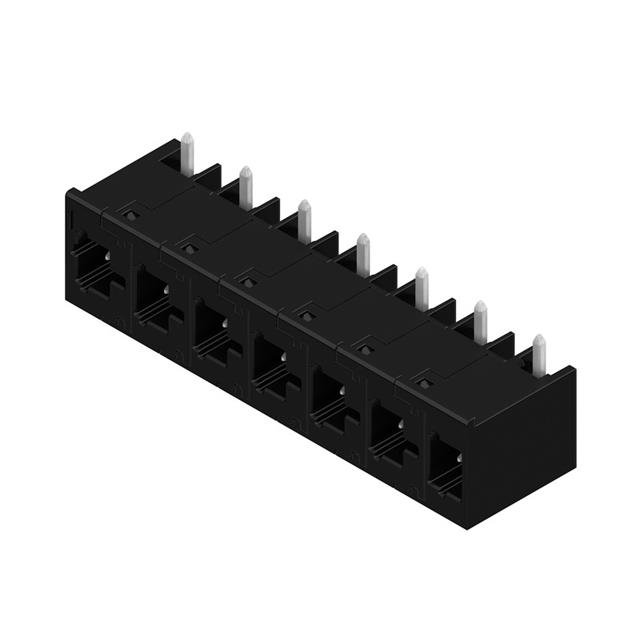

Same model may have multiple batches, images only for reference.

8000078326
Manufacturer No:	8000078326
Manufacturer:	Weidmuller
SUVSysrem No:	8000078326
Package:	Tube
Datasheet:	8000078326
Description:	7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) 90°, Right Angle Through Hole
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

8000078326 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Weidmuller
Package	Tube
Description	7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) 90°, Right Angle Through Hole
Color	Black
Mounting Type	Through Hole
Number of Positions	7
Pitch	0.295" (7.50mm)
Type	Header, Male Pins, Shrouded (4 Side)
Operating Temperature	-50°C ~ 125°C
Termination Style	Solder
Ingress Protection	IP20
Material Flammability Rating	UL94 V-0
Current - IEC	26.8A
Number of Levels	1
Positions Per Level	7
Contact Material	Copper Alloy
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA9T), Nylon 9T
Contact Mating Finish	Tin
Contact Tail Length	0.126" (3.20mm)
Insulation Height	0.469" (11.90mm)
Current - UL	18.5 A
Voltage - IEC	1 kV
Voltage - UL	300 V
