770-815/011-000 WAGO Connectors, Interconnects distributor and supplier

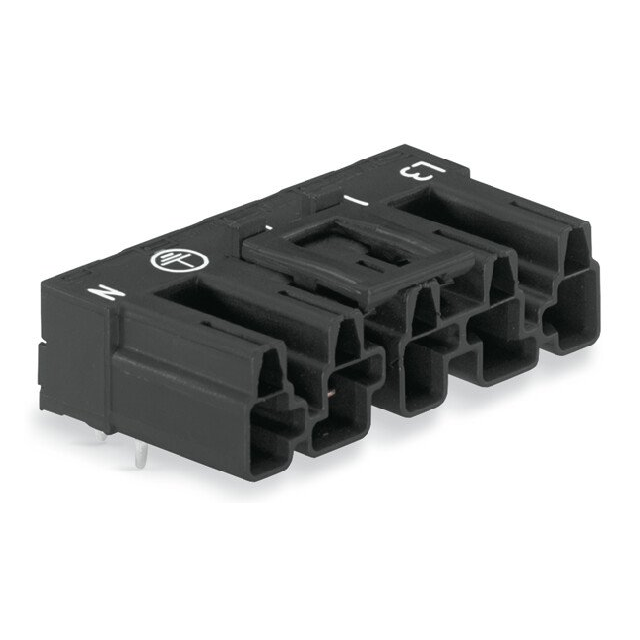

Same model may have multiple batches, images only for reference.

770-815/011-000
Manufacturer No:	770-815/011-000
Manufacturer:	WAGO
SUVSysrem No:	770-815/011-000
Package:	Box
Datasheet:	770-815/011-000
Description:	5 Position Terminal Block Plug, Male Pins 0.394" (10.00mm) 180° Panel Mount
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

770-815/011-000 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	WAGO
Package	Box
Description	5 Position Terminal Block Plug, Male Pins 0.394" (10.00mm) 180° Panel Mount
Features	Locking Feature
Color	Black
Mounting Type	Panel Mount
Number of Positions	5
Pitch	0.394" (10.00mm)
Type	Plug, Male Pins
Operating Temperature	-35°C ~ 85°C
Termination Style	Solder
Material Flammability Rating	UL94 V-0
Current - IEC	25A
Number of Levels	1
Positions Per Level	5
Plug Wire Entry	180°
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.575" (14.60mm)
Current - UL	23 A
Voltage - IEC	400 V
Voltage - UL	600 V

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
