770-233/002-000 WAGO Connectors, Interconnects distributor and supplier

Same model may have multiple batches, images only for reference.

770-233/002-000
Manufacturer No:	770-233/002-000
Manufacturer:	WAGO
SUVSysrem No:	770-233/002-000
Package:	Box
Datasheet:	770-233/002-000

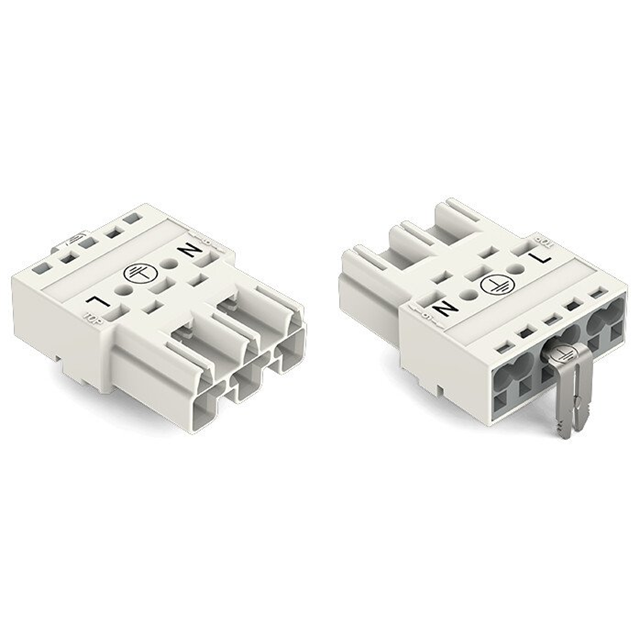

Description:	3 Position Terminal Block Plug, Male Pins 0.394" (10.00mm) 180° Free Hanging (In-Line)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

770-233/002-000 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	WAGO
Package	Box
Description	3 Position Terminal Block Plug, Male Pins 0.394" (10.00mm) 180° Free Hanging (In-Line)
Features	Locking Feature
Color	White
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Pitch	0.394" (10.00mm)
Type	Plug, Male Pins
Operating Temperature	-35°C ~ 85°C
Termination Style	Screwless - Spring Cage, Tension Clamp
Material Flammability Rating	UL94 V-0
Current - IEC	25A
Number of Levels	1
Wire Gauge or Range - AWG	12-20 AWG
Wire Gauge or Range - mm²	0.5-4mm²
Positions Per Level	3
Plug Wire Entry	180°
Housing Material	Polyamide (PA66), Nylon 6/6
Wire Strip Length	9mm
Insulation Height	0.508" (12.90mm)
Current - UL	23 A
Voltage - IEC	250 V
Voltage - UL	600 V
