| Product Attributes |
Attribute Value |
| Category |
Connectors, Interconnects |
| Manufacturer |
WAGO |
| Package |
Box |
| Description |

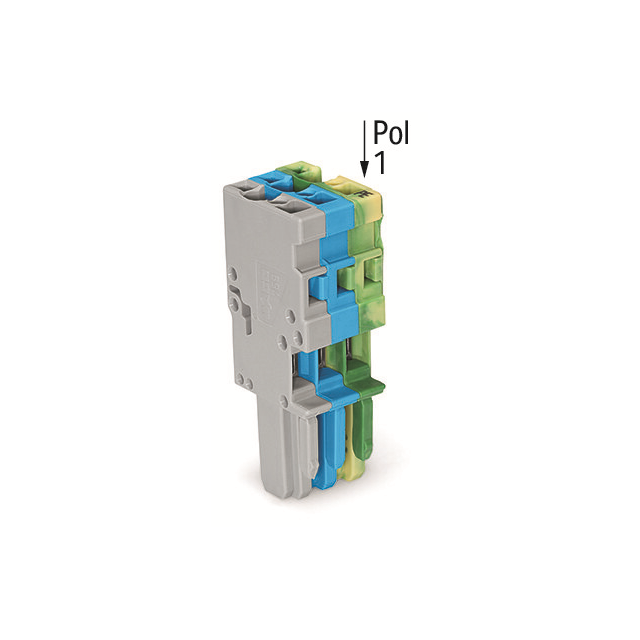

3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) |
| Features | Retention Latches (Non-Wire Side) |
| Color | Blue, Gray, Green, Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Pitch | 0.197" (5.00mm) |
| Type | Plug, Female Sockets |
| Termination Style | Screwless - Push-In Spring |
| Material Flammability Rating | UL94 V-0 |
| Current - IEC | 32A |
| Number of Levels | 1 (Mate), 2 (Input) |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Positions Per Level | 3 |
| Contact Material | Copper |
| Plug Wire Entry | 180° |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Wire Strip Length | 8-9mm |
| Insulation Height | 0.720" (18.29mm) |
| Voltage - IEC | 500 V |
