| Product Attributes |
Attribute Value |
| Category |
Discrete Semiconductor Products |
| Manufacturer |
Venkel LTD |
| Package |
Strip |
| Description |
Diode Array 1 Pair Series Connection 100 V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3 |

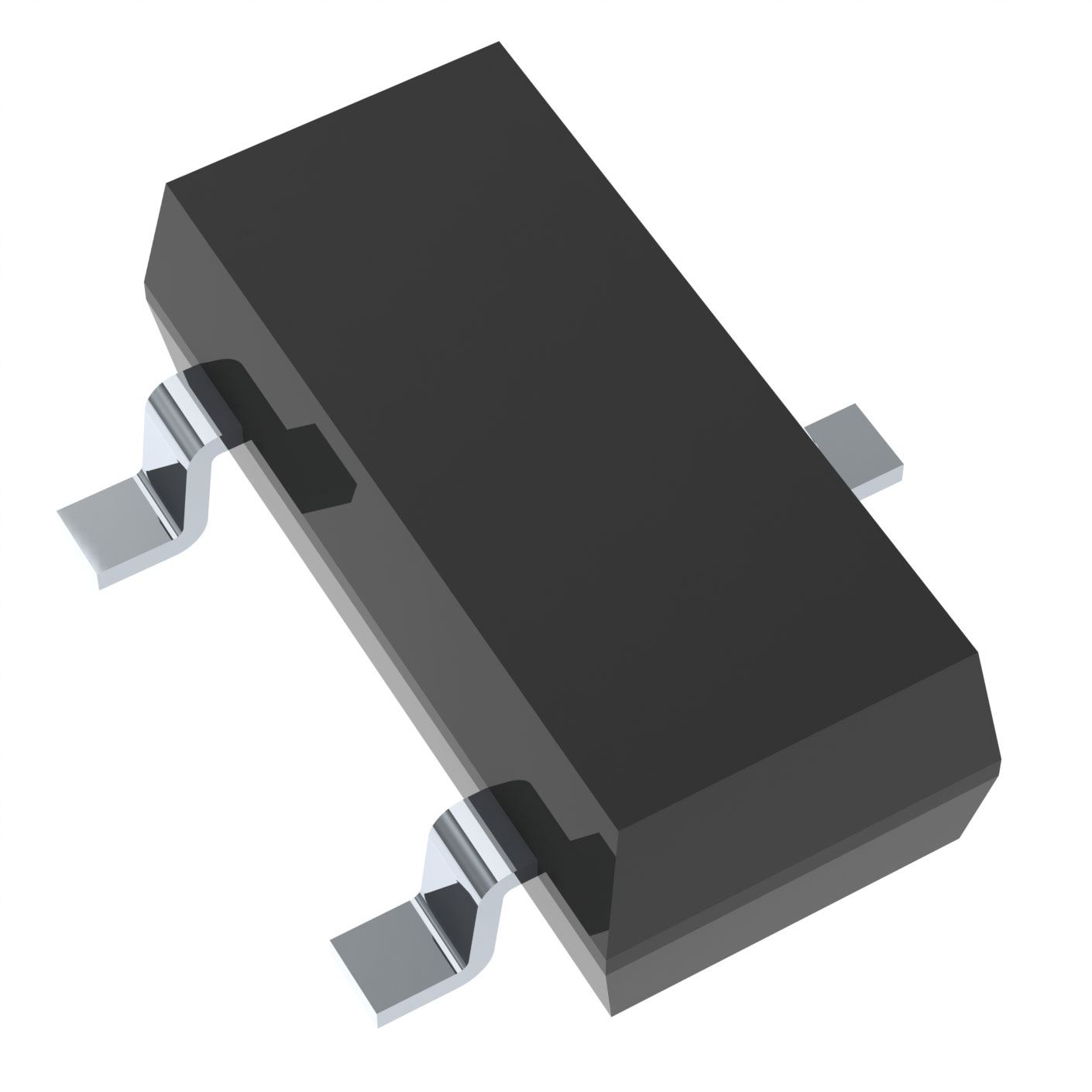

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 3 µA @ 100 V |
