GT30J65MRB,S1E Toshiba Electronic Devices and Storage Corporation Discrete Semiconductor Products distributor and supplier

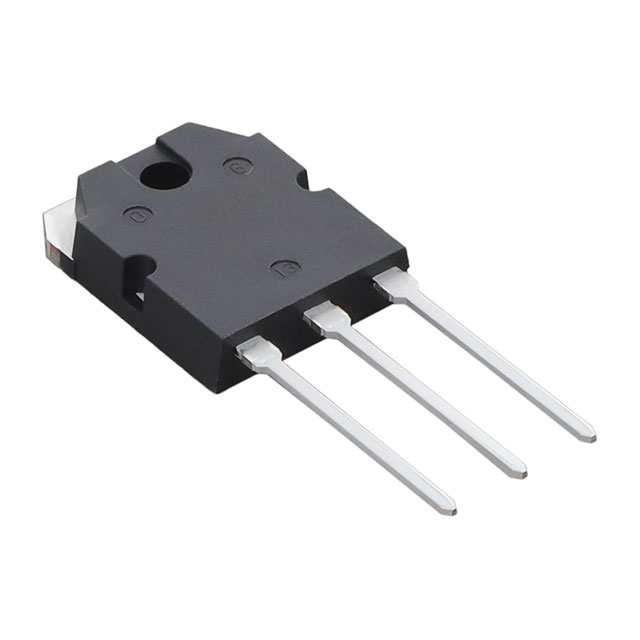

Same model may have multiple batches, images only for reference.

GT30J65MRB,S1E
Manufacturer No:	GT30J65MRB,S1E
Manufacturer:	Toshiba Electronic Devices and Storage Corporation
SUVSysrem No:	GT30J65MRB,S1E
Package:	Tube
Datasheet:	GT30J65MRB,S1E
Description:	IGBT 650 V 60 A 200 W Through Hole TO-3P(N)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

GT30J65MRB,S1E information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Package	Tube
Description	IGBT 650 V 60 A 200 W Through Hole TO-3P(N)
Package / Case	TO-3P-3, SC-65-3
Mounting Type	Through Hole
Operating Temperature	175°C (TJ)
Input Type	Standard
Reverse Recovery Time (trr)	200 ns
Vce(on) (Max) @ Vge, Ic	1.8V @ 15V, 30A
Supplier Device Package	TO-3P(N)
Td (on/off) @ 25°C	75ns/400ns
Switching Energy	1.4mJ (on), 220µJ (off)
Test Condition	400V, 15A, 56Ohm, 15V
Gate Charge	70 nC
Current - Collector (Ic) (Max)	60 A
Voltage - Collector Emitter Breakdown (Max)	650 V
Power - Max	200 W
