SNJ54LS109AW Texas Instruments Integrated Circuits (ICs) distributor and supplier

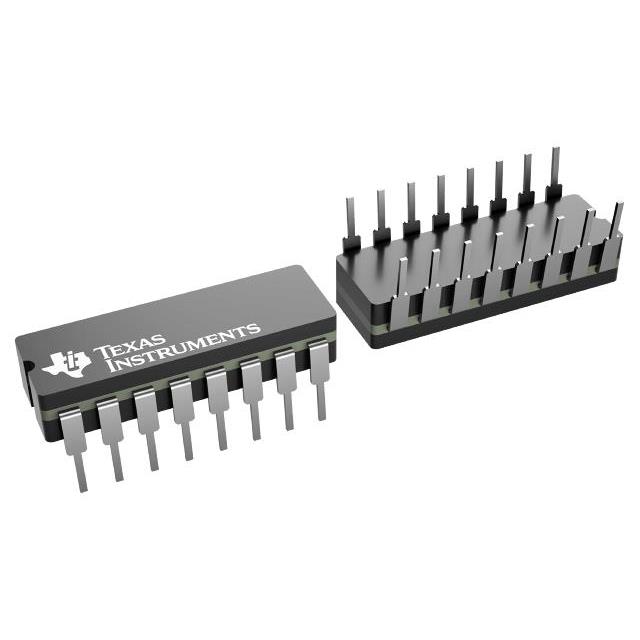

Same model may have multiple batches, images only for reference.

SNJ54LS109AW
Manufacturer No:	SNJ54LS109AW
Manufacturer:	Texas Instruments
SUVSysrem No:	SNJ54LS109AW
Package:	Tube
Datasheet:	SNJ54LS109AW
Description:	Flip Flop 2 Element JK Type 1 Bit Positive Edge 16-CFlatPack
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

SNJ54LS109AW information

Product Attributes	Attribute Value
Category	Integrated Circuits (ICs)
Manufacturer	Texas Instruments
Package	Tube
Description	Flip Flop 2 Element JK Type 1 Bit Positive Edge 16-CFlatPack
Package / Case	16-CFlatPack
Output Type	Complementary
Mounting Type	Surface Mount
Number of Elements	2
Function	Set(Preset) and Reset
Type	JK Type
Operating Temperature	-55°C ~ 125°C (TA)
Voltage - Supply	4.5V ~ 5.5V
Current - Quiescent (Iq)	8 mA
Current - Output High, Low	400µA, 4mA
Trigger Type	Positive Edge
Clock Frequency	33 MHz
Supplier Device Package	16-CFP
Max Propagation Delay @ V, Max CL	40ns @ 5V, 15pF
Number of Bits per Element	1
