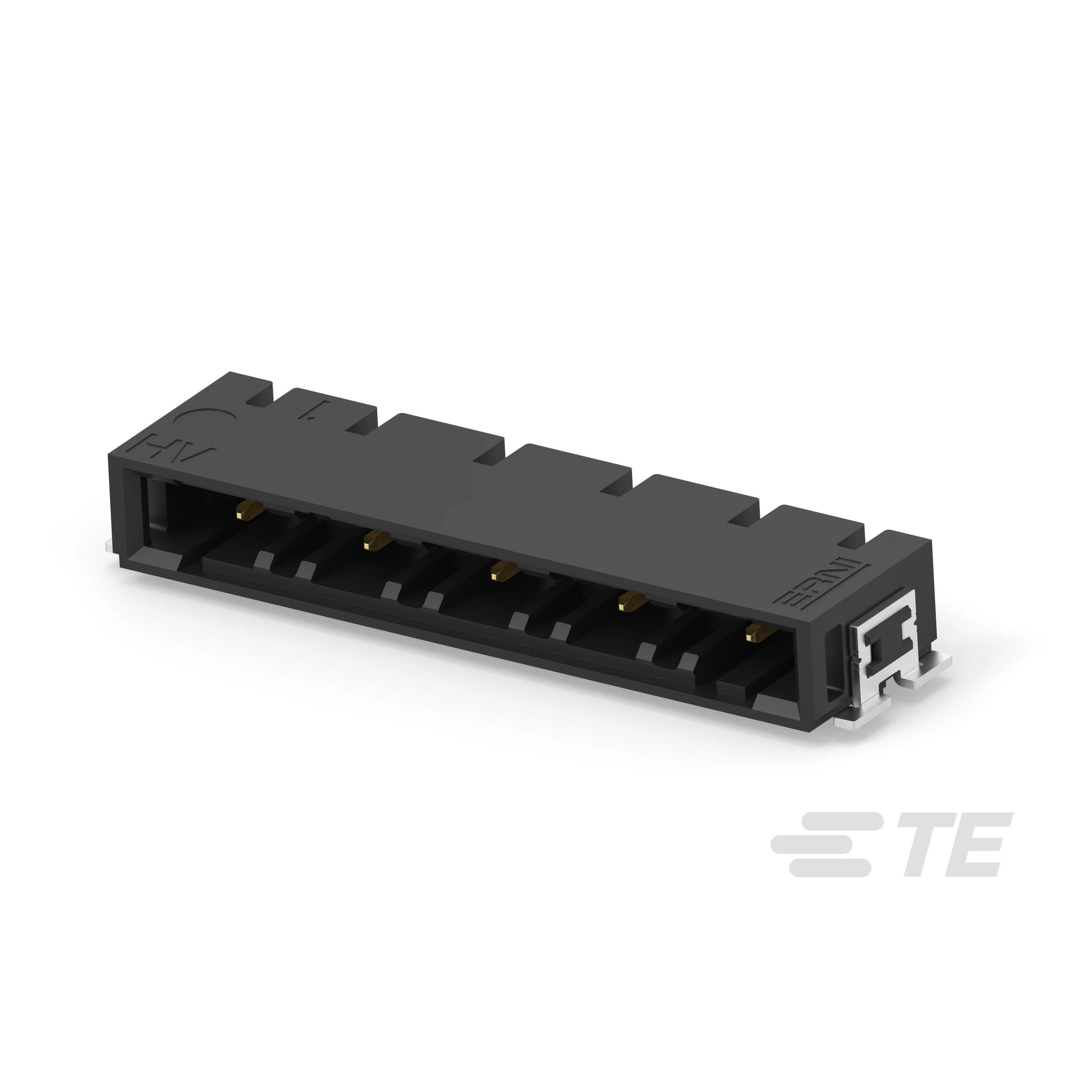

Same model may have multiple batches, images only for reference.

524232-E
Manufacturer No:	524232-E
Manufacturer:	TE Connectivity ERNI
SUVSysrem No:	524232-E
Package:	Bulk
Datasheet:	524232-E
Description:	Connector Header Through Hole, Right Angle 5 position 0.244" (6.20mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

524232-E information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	TE Connectivity ERNI
Package	Bulk
Description	Connector Header Through Hole, Right Angle 5 position 0.244" (6.20mm)
Features	Board Guide, Solder Retention
Connector Type	Header
Current Rating (Amps)	0.5A
Mounting Type	Through Hole, Right Angle
Number of Positions	5
Number of Rows	1
Style	Board to Board or Cable
Operating Temperature	-40°C ~ 150°C
Contact Type	Male Pin
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Insulation Color	Black
Pitch - Mating	0.244" (6.20mm)
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Post	25.0µin (0.63µm)
Contact Shape	Square
Insulation Height	0.197" (5.00mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Length - Mating	0.161" (4.09mm)
