5-2823132-0 TE Connectivity AMP Connectors Connectors, Interconnects distributor and supplier

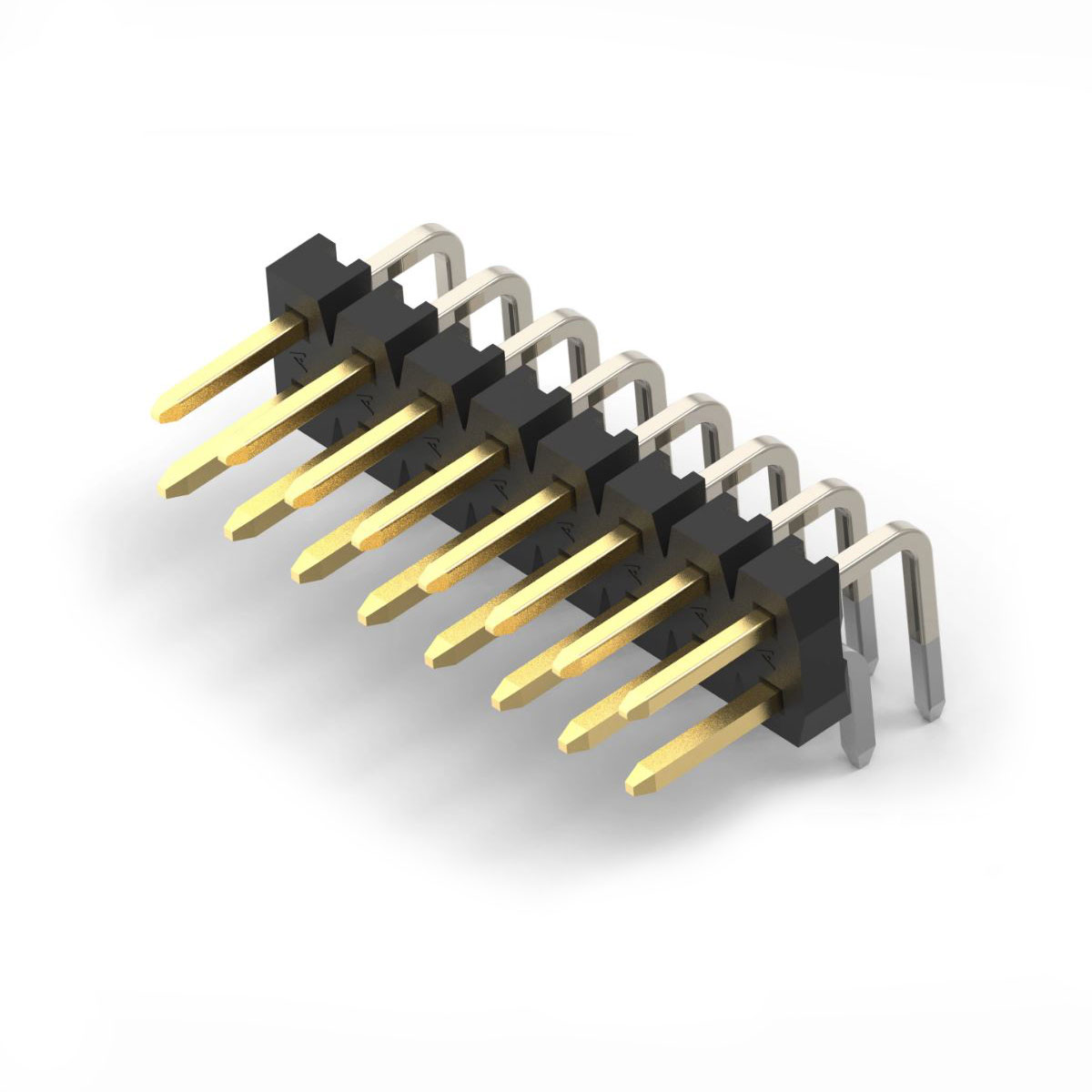

Same model may have multiple batches, images only for reference.

5-2823132-0
Manufacturer No:	5-2823132-0
Manufacturer:	TE Connectivity AMP Connectors
SUVSysrem No:	5-2823132-0
Package:	Tube
Datasheet:	5-2823132-0
Description:	Connector Header Through Hole, Right Angle 50 position 0.079" (2.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

5-2823132-0 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Package	Tube
Description	Connector Header Through Hole, Right Angle 50 position 0.079" (2.00mm)
Connector Type	Header, Breakaway
Voltage Rating	125VAC/DC
Current Rating (Amps)	2A
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Rows	2
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Insulation Color	Black
Pitch - Mating	0.079" (2.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.94µin (0.100µm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	12.0µin (0.30µm)
Contact Shape	Square
Contact Length - Post	0.110" (2.80mm)
Insulation Height	0.157" (4.00mm)
Shrouding	Unshrouded
Insulation Material	Thermoplastic
Row Spacing - Mating	0.079" (2.00mm)
Contact Length - Mating	0.157" (4.00mm)

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
