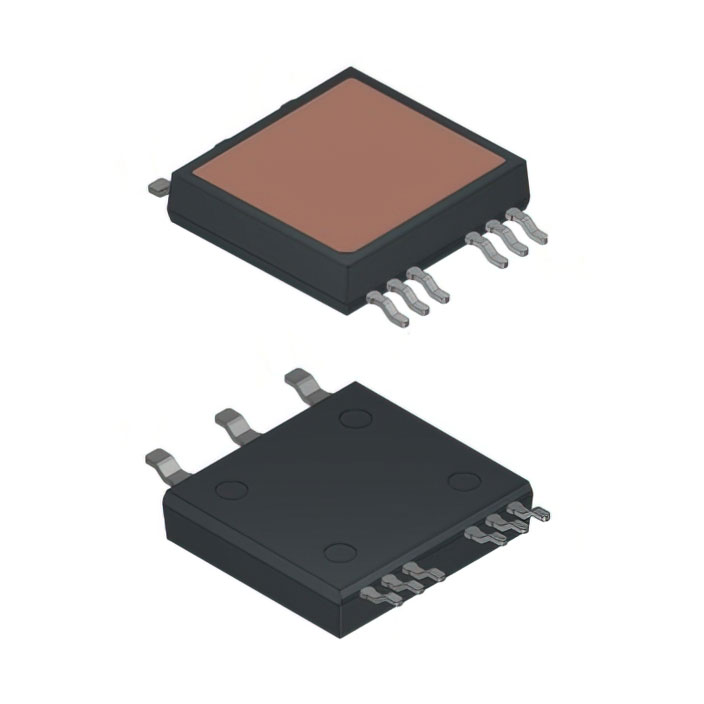

STGSH80HB65DAG
Manufacturer No:	STGSH80HB65DAG
Manufacturer:	STMicroelectronics
SUVSysrem No:	STGSH80HB65DAG
Package:	Bulk
Datasheet:	STGSH80HB65DAG
Description:	IGBT Module Half Bridge 650 V 83 A 250 W Surface Mount 9-ACEPACK SMIT
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

STGSH80HB65DAG information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	STMicroelectronics
Package	Bulk
Description	IGBT Module Half Bridge 650 V 83 A 250 W Surface Mount 9-ACEPACK SMIT
Package / Case	9-PowerSMD
Mounting Type	Surface Mount
Input	Standard
Configuration	Half Bridge
Operating Temperature	-55°C ~ 175°C (TJ)
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 80A
NTC Thermistor	No
Supplier Device Package	9-ACEPACK SMIT
Current - Collector (Ic) (Max)	83 A
Voltage - Collector Emitter Breakdown (Max)	650 V
Power - Max	250 W
Input Capacitance (Cies) @ Vce	10450 pF @ 25 V
