| Product Attributes |
Attribute Value |
| Category |
Connectors, Interconnects |
| Manufacturer |
SCHURTER |
| Package |
Box |
| Description |

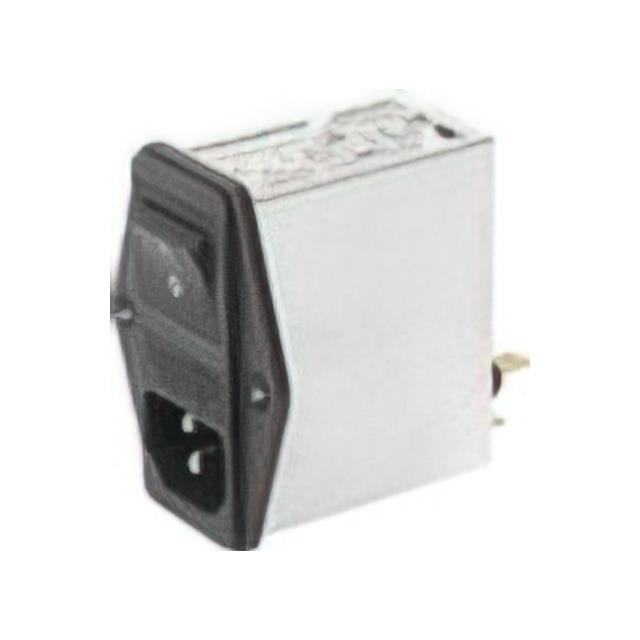

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.250" (6.3mm) |
| Approval Agency | cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Cutout Dimensions | Rectangular - 29.50mm x 61.00mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | Switch On-Off |
| Fuse Holder, Drawer | Fuse Holder |
| Current Rating - Appliance Inlet | 4A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 4A |
