| Product Attributes |
Attribute Value |
| Category |
Connectors, Interconnects |
| Manufacturer |
SCHURTER |
| Package |
Box |
| Description |

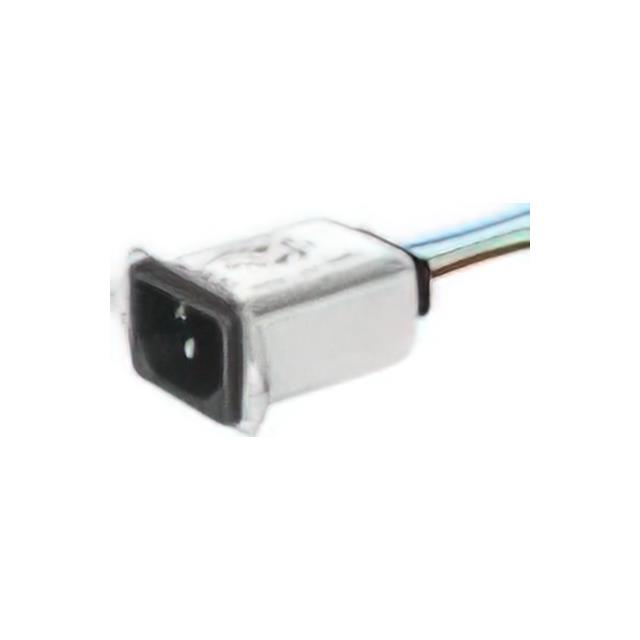

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange |
| Features | Rear Side Mount, Shielded, V-Lock Notch |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Wire Leads |
| Approval Agency | cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Cutout Dimensions | Rectangular - 30.50mm x 22.50mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Current Rating - Appliance Inlet | 4A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 4A |
