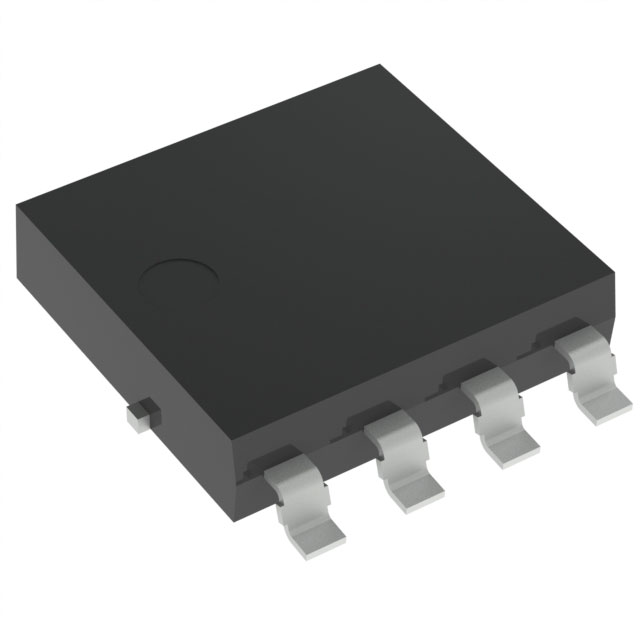

Same model may have multiple batches, images only for reference.

NVTYS040N10MCLTWG
Manufacturer No:	NVTYS040N10MCLTWG
Manufacturer:	Sanyo Semiconductor/onsemi
SUVSysrem No:	NVTYS040N10MCLTWG
Package:	Tape & Reel (TR)
Datasheet:	NVTYS040N10MCLTWG
Description:	N-Channel 100 V 6A (Ta), 20A (Tc) 3.1W (Ta), 37W (Tc) Surface Mount 8-LFPAK
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

NVTYS040N10MCLTWG information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Sanyo Semiconductor/onsemi
Package	Tape & Reel (TR)
Description	N-Channel 100 V 6A (Ta), 20A (Tc) 3.1W (Ta), 37W (Tc) Surface Mount 8-LFPAK
Package / Case	SOT-1205, 8-LFPAK56
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 175°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	6A (Ta), 20A (Tc)
Rds On (Max) @ Id, Vgs	40.9mOhm @ 5A, 10V
Power Dissipation (Max)	3.1W (Ta), 37W (Tc)
Vgs(th) (Max) @ Id	3V @ 27µA
Supplier Device Package	8-LFPAK
Grade	Automotive
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	100 V
Gate Charge (Qg) (Max) @ Vgs	8.6 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	564 pF @ 50 V
Qualification	AEC-Q101
