Home / Products / Discrete Semiconductor Products / Transistors / Bipolar (BJT) / Bipolar RF Transistors / NSVF4009SG4T1G

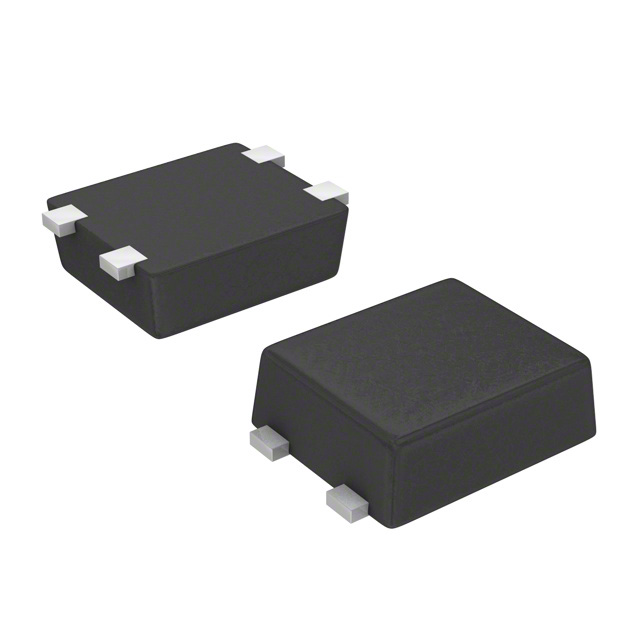

Same model may have multiple batches, images only for reference.

NSVF4009SG4T1G
Manufacturer No: NSVF4009SG4T1G
Manufacturer: Sanyo Semiconductor/onsemi
SUVSysrem No: NSVF4009SG4T1G
Package: Tape & Reel (TR)
Datasheet: NSVF4009SG4T1G
Description: RF Transistor NPN 3.5V 40mA 25GHz 120mW Surface Mount SC-82FL/MCPH4
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

NSVF4009SG4T1G information
Product Attributes Attribute Value
Category Discrete Semiconductor Products
Manufacturer Sanyo Semiconductor/onsemi
Package Tape & Reel (TR)
Description RF Transistor NPN 3.5V 40mA 25GHz 120mW Surface Mount SC-82FL/MCPH4
Package / Case4-SMD, Flat Leads
Mounting TypeSurface Mount
Transistor TypeNPN
Operating Temperature-55°C ~ 150°C (TJ)
Gain17dB
Power - Max120mW
Current - Collector (Ic) (Max)40mA
Voltage - Collector Emitter Breakdown (Max)3.5V
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 5mA, 1V
Frequency - Transition25GHz
Noise Figure (dB Typ @ f)1.1dB @ 2GHz
Supplier Device PackageSC-82FL/MCPH4
GradeAutomotive
QualificationAEC-Q101
