Home / Products / Isolators / Isolators - Gate Drivers / NCP51563BBDWR2G

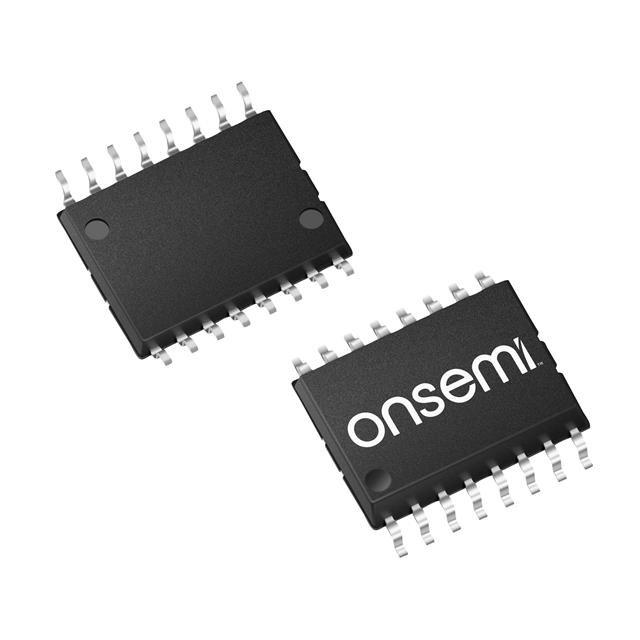

Same model may have multiple batches, images only for reference.

NCP51563BBDWR2G
Manufacturer No: NCP51563BBDWR2G
Manufacturer: Sanyo Semiconductor/onsemi
SUVSysrem No: NCP51563BBDWR2G
Package: Tape & Reel (TR)
Datasheet: NCP51563BBDWR2G
Description: 4.5A, 9A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 16-SOIC
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

NCP51563BBDWR2G information
Product Attributes Attribute Value
Category Isolators
Manufacturer Sanyo Semiconductor/onsemi
Package Tape & Reel (TR)
Description 4.5A, 9A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 16-SOIC
Package / Case16-SOIC (0.295", 7.50mm Width), 14 Leads
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 125°C
Current - Peak Output4.5A, 9A
TechnologyCapacitive Coupling
Current - Output High, Low2.6A, 7A
Voltage - Isolation5000Vrms
Approval AgencyCQC, UL, VDE
Supplier Device Package16-SOIC
Rise / Fall Time (Typ)11ns, 10ns
Common Mode Transient Immunity (Min)200V/ns
Propagation Delay tpLH / tpHL (Max)58ns, 58ns
Pulse Width Distortion (Max)5ns
Number of Channels2
Voltage - Output Supply9.5V ~ 30V
