FGHL50T65LQDTL4 Sanyo Semiconductor/onsemi Discrete Semiconductor Products distributor and supplier

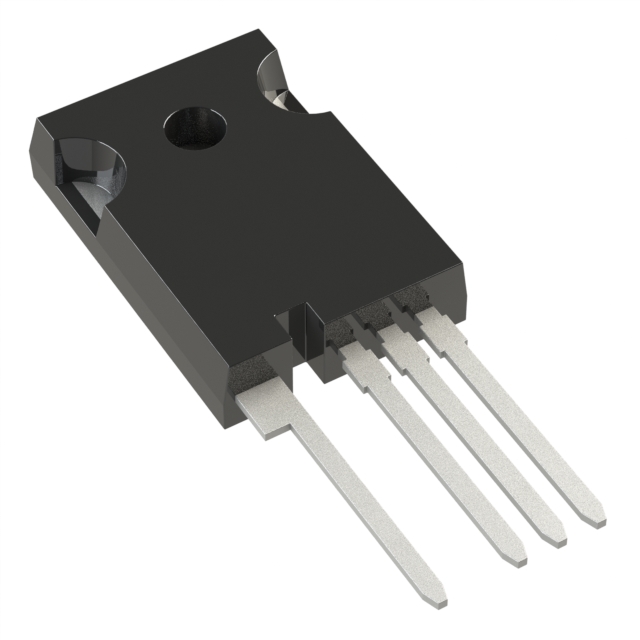

Same model may have multiple batches, images only for reference.

FGHL50T65LQDTL4
Manufacturer No:	FGHL50T65LQDTL4
Manufacturer:	Sanyo Semiconductor/onsemi
SUVSysrem No:	FGHL50T65LQDTL4
Package:	Tube
Datasheet:	FGHL50T65LQDTL4
Description:	IGBT Trench Field Stop 650 V 80 A 341 W Through Hole TO-247-4L
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

FGHL50T65LQDTL4 information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Sanyo Semiconductor/onsemi
Package	Tube
Description	IGBT Trench Field Stop 650 V 80 A 341 W Through Hole TO-247-4L
Package / Case	TO-247-4
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 175°C (TJ)
Input Type	Standard
Reverse Recovery Time (trr)	75 ns
Vce(on) (Max) @ Vge, Ic	1.35V @ 15V, 50A
Supplier Device Package	TO-247-4L
IGBT Type	Trench Field Stop
Td (on/off) @ 25°C	28ns/424ns
Switching Energy	410µJ (on), 860µJ (off)
Test Condition	400V, 50A, 4.7Ohm, 15V
Gate Charge	509 nC
Current - Collector (Ic) (Max)	80 A
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector Pulsed (Icm)	200 A
Power - Max	341 W
