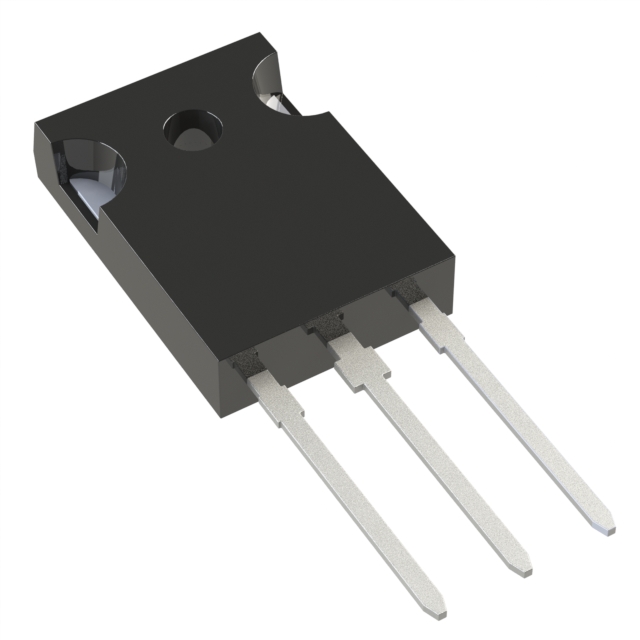

AFGHL25T120RH
Manufacturer No: AFGHL25T120RH
Manufacturer: Sanyo Semiconductor/onsemi
SUVSysrem No: AFGHL25T120RH
Package: Tube
Datasheet: AFGHL25T120RH
Description: IGBT Trench Field Stop 1200 V 48 A 261 W Through Hole TO-247-3
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

AFGHL25T120RH information
Product Attributes Attribute Value
Category Discrete Semiconductor Products
Manufacturer Sanyo Semiconductor/onsemi
Package Tube
Description IGBT Trench Field Stop 1200 V 48 A 261 W Through Hole TO-247-3
Package / CaseTO-247-3
Mounting TypeThrough Hole
Operating Temperature-55°C ~ 175°C (TJ)
Input TypeStandard
Reverse Recovery Time (trr)159 ns
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 25A
Supplier Device PackageTO-247-3
IGBT TypeTrench Field Stop
Td (on/off) @ 25°C27ns/118ns
Switching Energy1.94mJ (on), 770µJ (off)
Test Condition600V, 25A, 5Ohm, 15V
Gate Charge189 nC
GradeAutomotive
Current - Collector (Ic) (Max)48 A
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector Pulsed (Icm)100 A
Power - Max261 W
QualificationAEC-Q101
