Home / Products / Discrete Semiconductor Products / Transistors / Bipolar (BJT) / Bipolar RF Transistors / 2N5770_D75Z

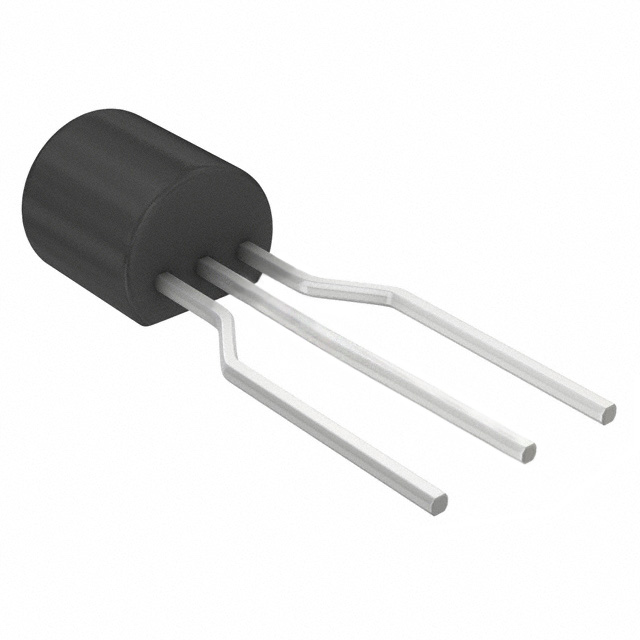

Same model may have multiple batches, images only for reference.

2N5770_D75Z
Manufacturer No: 2N5770_D75Z
Manufacturer: Sanyo Semiconductor/onsemi
SUVSysrem No: 2N5770_D75Z
Package: Tape & Box (TB)
Datasheet: 2N5770_D75Z
Description: RF Transistor NPN 15V 50mA 350mW Through Hole TO-92-3
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

2N5770_D75Z information
Product Attributes Attribute Value
Category Discrete Semiconductor Products
Manufacturer Sanyo Semiconductor/onsemi
Package Tape & Box (TB)
Description RF Transistor NPN 15V 50mA 350mW Through Hole TO-92-3
Package / CaseTO-226-3, TO-92-3 (TO-226AA) Formed Leads
Mounting TypeThrough Hole
Transistor TypeNPN
Operating Temperature-55°C ~ 150°C (TJ)
Gain15dB
Power - Max350mW
Current - Collector (Ic) (Max)50mA
Voltage - Collector Emitter Breakdown (Max)15V
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 8mA, 10V
Noise Figure (dB Typ @ f)6dB @ 60MHz
Supplier Device PackageTO-92-3
Package

  • Step1:
    Product

  • Step2:
    Casing drivepipe

  • Step3:
    Anti-static bag

  • Step4:
    Packging boxes

  • Step5:
    bar-code shipping tag
