RQ1E050RPHZGTR ROHM Semiconductor Discrete Semiconductor Products distributor and supplier

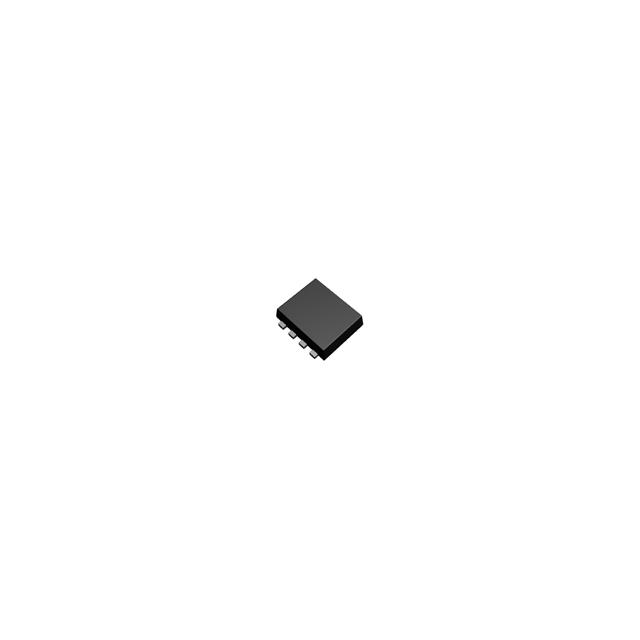

Same model may have multiple batches, images only for reference.

RQ1E050RPHZGTR
Manufacturer No:	RQ1E050RPHZGTR
Manufacturer:	ROHM Semiconductor
SUVSysrem No:	RQ1E050RPHZGTR
Package:	Tape & Reel (TR)
Datasheet:	RQ1E050RPHZGTR
Description:	P-Channel 30 V 5A (Ta) 1.1W (Ta) Surface Mount TSMT8
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

RQ1E050RPHZGTR information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	ROHM Semiconductor
Package	Tape & Reel (TR)
Description	P-Channel 30 V 5A (Ta) 1.1W (Ta) Surface Mount TSMT8
Package / Case	8-SMD, Flat Lead
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C
Technology	MOSFET (Metal Oxide)
FET Type	P-Channel
Current - Continuous Drain (Id) @ 25°C	5A (Ta)
Rds On (Max) @ Id, Vgs	31mOhm @ 5A, 10V
Power Dissipation (Max)	1.1W (Ta)
Vgs(th) (Max) @ Id	2.5V @ 1mA
Supplier Device Package	TSMT8
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4 V
Input Capacitance (Ciss) (Max) @ Vds	1300 pF @ 10 V

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
