| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
PCTEL |
| Package |
Box |
| Description |

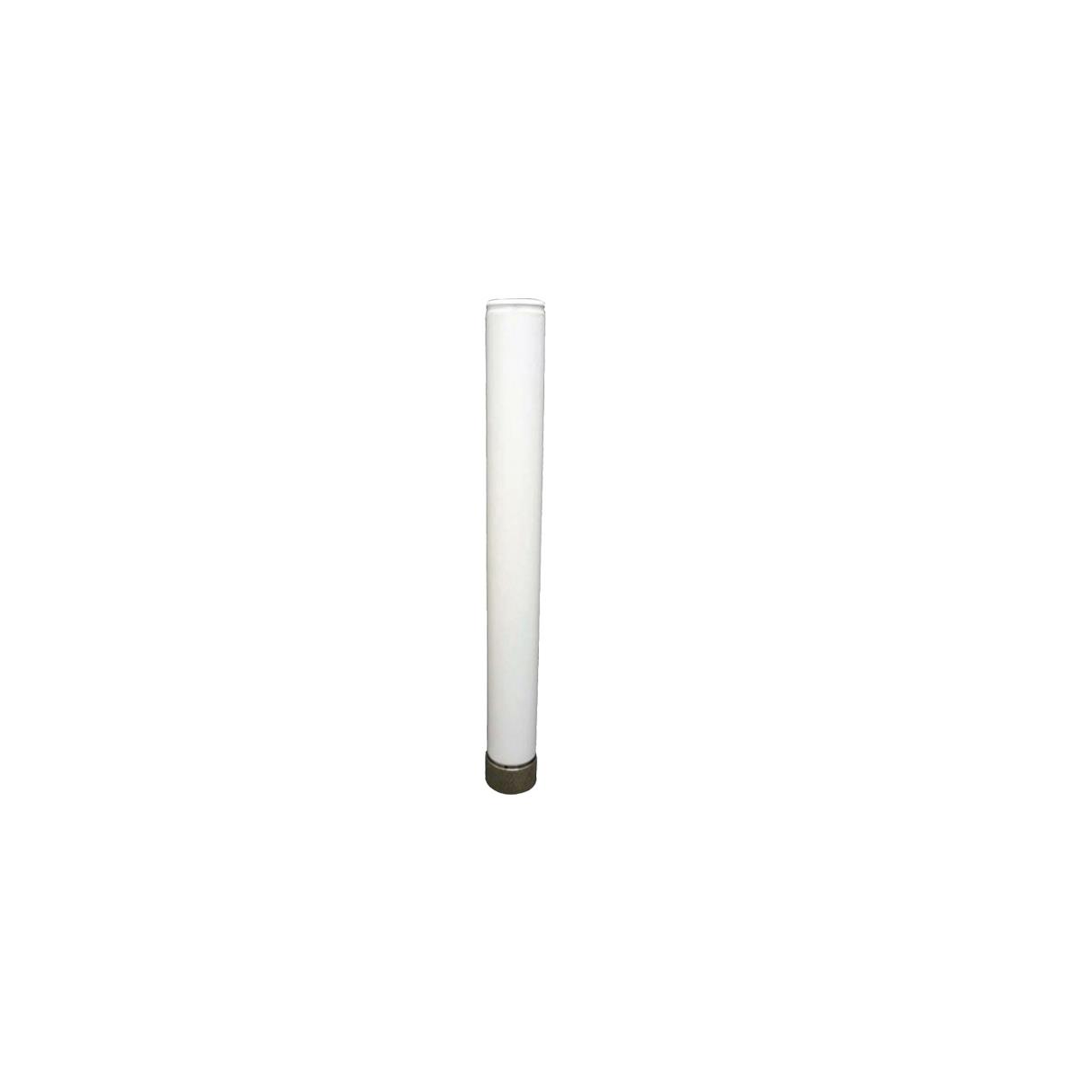

628.5MHz, 768MHz, 928MHz, 1.855GHz, 2.2GHz, 2.55GHz, 3.75GHz, 5.412GHz 5G Whip, Straight RF Antenna 617MHz ~ 640MHz, 640MHz ~ 896MHz, 896MHz ~ 960MHz, 1.71GHz ~ 2GHz, 2GHz ~ 2.4GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 5.925GHz 1.81dBi, 2.38dBi, 1.81dBi, 3.43dBi, 3.68dBi, 3.17dBi, 5.87dBi, 4.33dBi N Type Female Bracket Mount |
| Mounting Type | Bracket Mount |
| Frequency Range | 617MHz ~ 640MHz, 640MHz ~ 896MHz, 896MHz ~ 960MHz, 1.71GHz ~ 2GHz, 2GHz ~ 2.4GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 5.925GHz |
| Applications | 5G |
| Gain | 1.81dBi, 2.38dBi, 1.81dBi, 3.43dBi, 3.68dBi, 3.17dBi, 5.87dBi, 4.33dBi |
| Termination | N Type Female |
| Ingress Protection | IP67 |
| Number of Bands | 8 |
| VSWR | 2.5, 2.7, 3, 3.1, 3.5, 4.5 |
| Antenna Type | Whip, Straight |
| Height (Max) | 10.500" (266.70mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 628.5MHz, 768MHz, 928MHz, 1.855GHz, 2.2GHz, 2.55GHz, 3.75GHz, 5.412GHz |
| RF Family/Standard | Cellular |
| Power - Max | 25 W |
