PE45919 Pasternack Connectors, Interconnects distributor and supplier

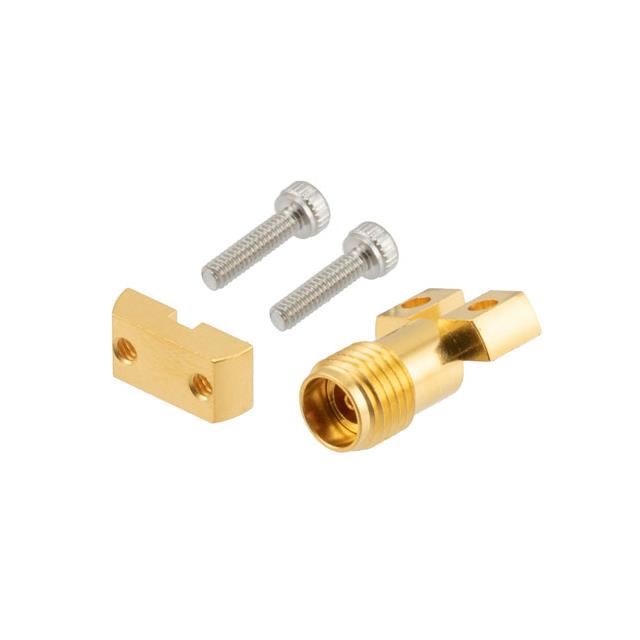

Same model may have multiple batches, images only for reference.

PE45919
Manufacturer No:	PE45919
Manufacturer:	Pasternack
SUVSysrem No:	PE45919
Package:	Retail Package
Datasheet:	PE45919
Description:	2.92mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

PE45919 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Pasternack
Package	Retail Package
Description	2.92mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Impedance	50 Ohms
Mounting Type	Board Edge, End Launch
Operating Temperature	-40°C ~ 165°C
Insertion Loss	0.25dB
Fastening Type	Threaded
Connector Style	2.92mm
Dielectric Material	Polyetherimide (PEI)
Body Material	Brass
Housing Color	Gold
Mating Cycles	500
Shield Termination	Screw
Center Contact Material	Beryllium Copper
Body Finish	Gold
Center Contact Plating	Gold
Frequency - Max	40 GHz
Number of Ports	1
Voltage Rating	250 V
