| Product Attributes |
Attribute Value |
| Category |
Isolators |
| Manufacturer |
NVE Corporation |
| Package |
Bulk |
| Description |
CAN, RS232, RS422, RS485, SPI Digital Isolator 2500Vrms 2 Channel 100Mbps 15kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) |

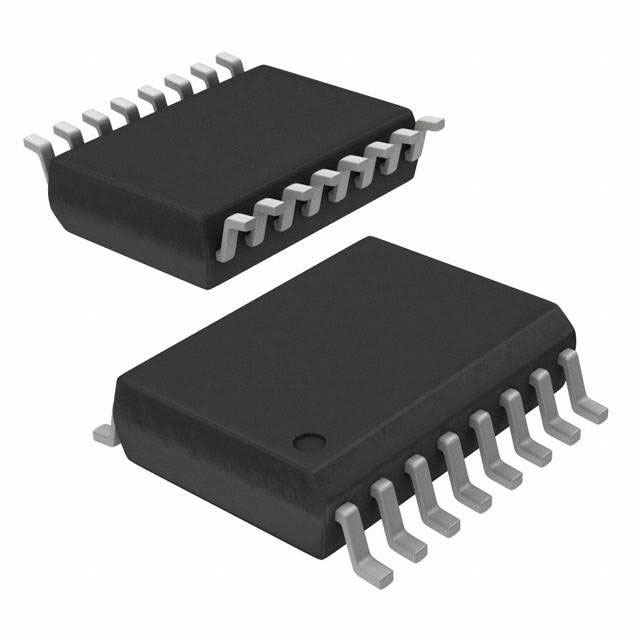

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | CAN, RS232, RS422, RS485, SPI |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5.5V |
| Data Rate | 100Mbps |
| Technology | GMR (Giant Magnetoresistive) |
| Voltage - Isolation | 2500Vrms |
| Inputs - Side 1/Side 2 | 1/1 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 15ns, 15ns |
| Isolated Power | Yes |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 5ns |
| Number of Channels | 2 |
