NSF080120L4A0Q Nexperia Discrete Semiconductor Products distributor and supplier

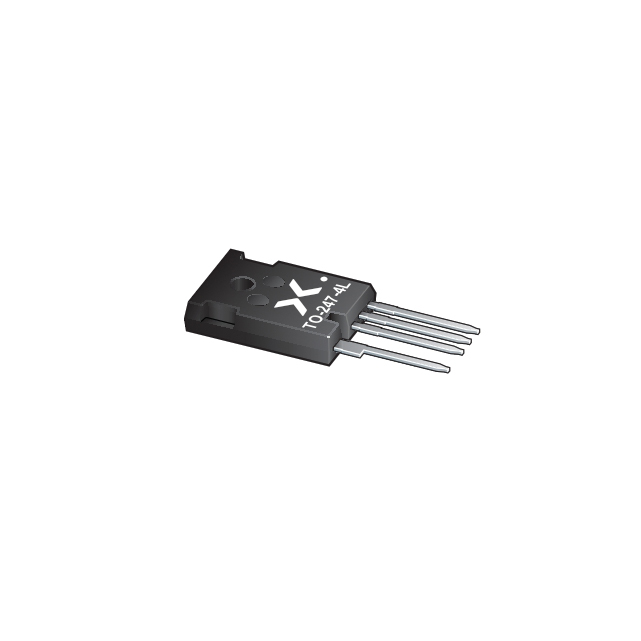

Same model may have multiple batches, images only for reference.

NSF080120L4A0Q
Manufacturer No:	NSF080120L4A0Q
Manufacturer:	Nexperia
SUVSysrem No:	NSF080120L4A0Q
Package:	Tube
Datasheet:	NSF080120L4A0Q
Description:	N-Channel 1200 V 35A (Tc) 183W (Tc) Through Hole TO-247
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

NSF080120L4A0Q information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Nexperia
Package	Tube
Description	N-Channel 1200 V 35A (Tc) 183W (Tc) Through Hole TO-247
Package / Case	TO-247-4
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 175°C (TJ)
Technology	SiC (Silicon Carbide Junction Transistor)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	35A (Tc)
Rds On (Max) @ Id, Vgs	120mOhm @ 20A, 15V
Power Dissipation (Max)	183W (Tc)
Vgs(th) (Max) @ Id	2.9V @ 2mA
Supplier Device Package	TO-247
Drive Voltage (Max Rds On, Min Rds On)	15V, 18V
Vgs (Max)	+22V, -10V
Drain to Source Voltage (Vdss)	1200 V
Gate Charge (Qg) (Max) @ Vgs	52 nC @ 15 V
Input Capacitance (Ciss) (Max) @ Vds	1335 pF @ 800 V

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
