SI3420A-13P Micro Commercial Components (MCC) Discrete Semiconductor Products distributor and supplier

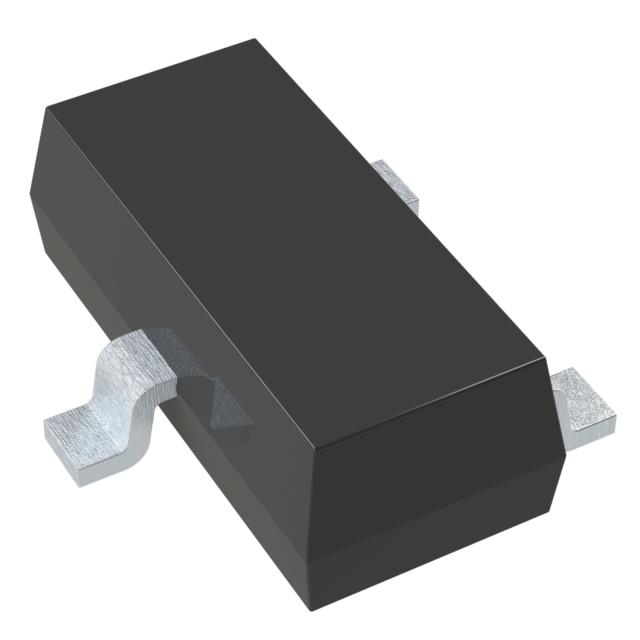

Same model may have multiple batches, images only for reference.

SI3420A-13P
Manufacturer No:	SI3420A-13P
Manufacturer:	Micro Commercial Components (MCC)
SUVSysrem No:	SI3420A-13P
Package:	Tape & Reel (TR)
Datasheet:	SI3420A-13P
Description:	N-Channel 20 V 6A (Ta) 1.25W Surface Mount SOT-23
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

SI3420A-13P information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Micro Commercial Components (MCC)
Package	Tape & Reel (TR)
Description	N-Channel 20 V 6A (Ta) 1.25W Surface Mount SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Rds On (Max) @ Id, Vgs	28mOhm @ 5A, 4.5V
Power Dissipation (Max)	1.25W
Vgs(th) (Max) @ Id	1V @ 250µA
Supplier Device Package	SOT-23
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Vgs (Max)	±10V
Drain to Source Voltage (Vdss)	20 V
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	888 pF @ 10 V
