| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
Maxtena |
| Package |
Tape & Box (TB) |
| Description |

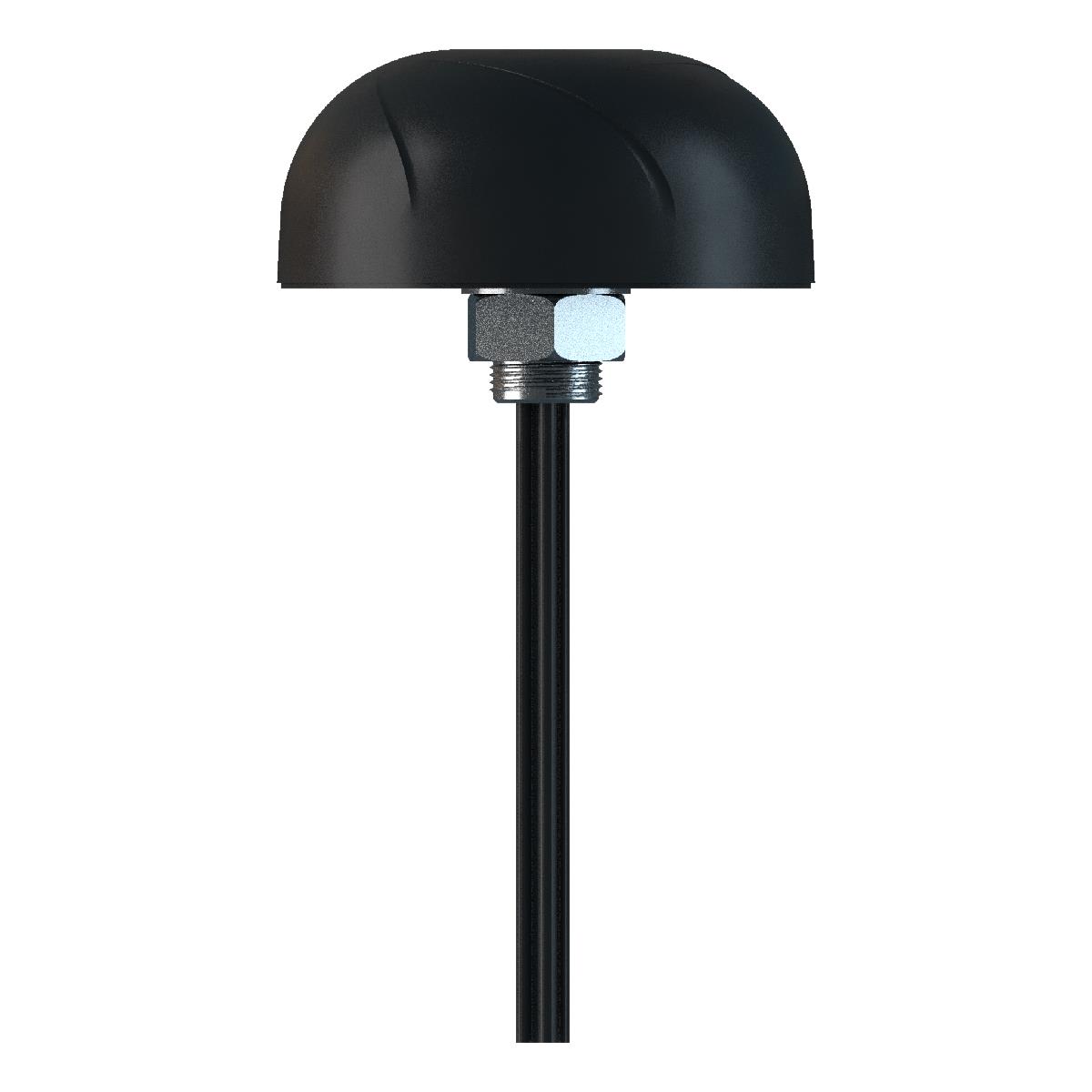

829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.45GHz, 2.495GHz, 5.5GHz GNSS, LTE, Wi-Fi Dome RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 4dBi, 3dBi, 3dBi, 3.5dBi, 6dBi, 5dBi, 5dBi, 8dBi Fakra, SMA Panel Mount |
| Features | Cable - 1m, LNA |
| Mounting Type | Panel Mount |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz |
| Applications | GNSS, LTE, Wi-Fi |
| Gain | 4dBi, 3dBi, 3dBi, 3.5dBi, 6dBi, 5dBi, 5dBi, 8dBi |
| Termination | Fakra, SMA |
| Number of Bands | 8 |
| VSWR | 2, 4 |
| Antenna Type | Dome |
| Height (Max) | 2.618" (66.50mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.45GHz, 2.495GHz, 5.5GHz |
| RF Family/Standard | Cellular, Navigation, WiFi |
