| Product Attributes |
Attribute Value |
| Category |
Isolators |
| Manufacturer |
Maxim Integrated / Analog Devices |
| Package |
Tube |
| Description |

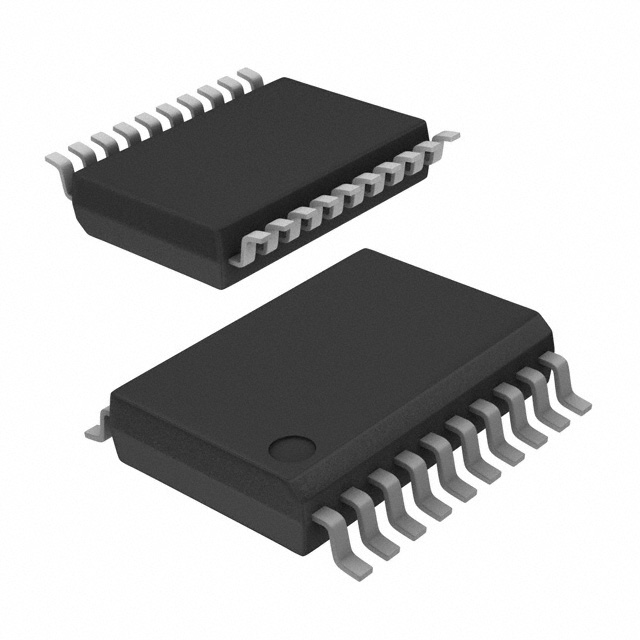

CAN, RS232, RS422, RS485, SPI Digital Isolator 3750Vrms 6 Channel 200Mbps 50kV/µs (Typ) CMTI 20-SSOP (0.209", 5.30mm Width) |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Type | CAN, RS232, RS422, RS485, SPI |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.71V ~ 5.5V |
| Data Rate | 200Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 3750Vrms |
| Inputs - Side 1/Side 2 | 4/2 |
| Supplier Device Package | 20-SSOP |
| Rise / Fall Time (Typ) | 0.8ns, 1ns (Max) |
| Common Mode Transient Immunity (Min) | 50kV/µs (Typ) |
| Propagation Delay tpLH / tpHL (Max) | 9.5ns, 9.9ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 2ns |
| Grade | Automotive |
| Number of Channels | 6 |
| Qualification | AEC-Q100 |
