| Product Attributes |
Attribute Value |
| Category |
Isolators |
| Manufacturer |
Maxim Integrated / Analog Devices |
| Package |
Tape & Reel (TR) |
| Description |
CAN, RS232, RS422, RS485, SPI Digital Isolator 5000Vrms 4 Channel 25Mbps 50kV/µs (Typ) CMTI 16-SOIC (0.295", 7.50mm Width) |

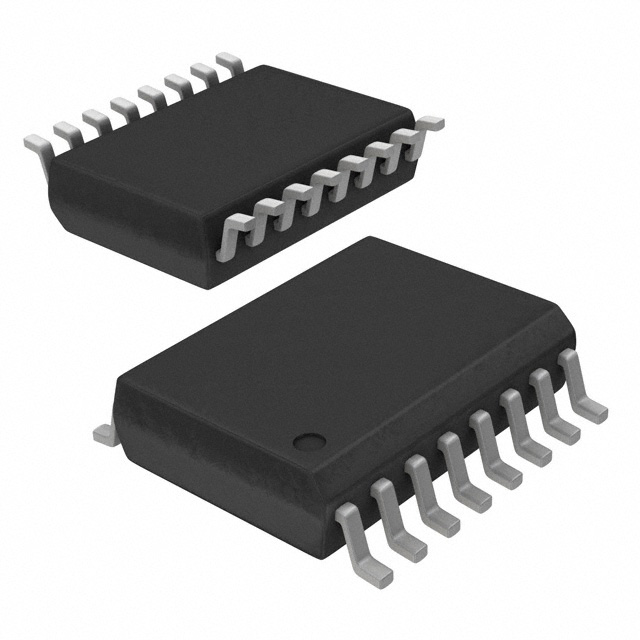

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | CAN, RS232, RS422, RS485, SPI |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.71V ~ 5.5V |
| Data Rate | 25Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 2/2 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 0.8ns, 1ns (Max) |
| Common Mode Transient Immunity (Min) | 50kV/µs (Typ) |
| Propagation Delay tpLH / tpHL (Max) | 32.5ns, 33.6ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 4ns |
| Number of Channels | 4 |
