MAX22421FASA+ Maxim Integrated / Analog Devices Isolators distributor and supplier

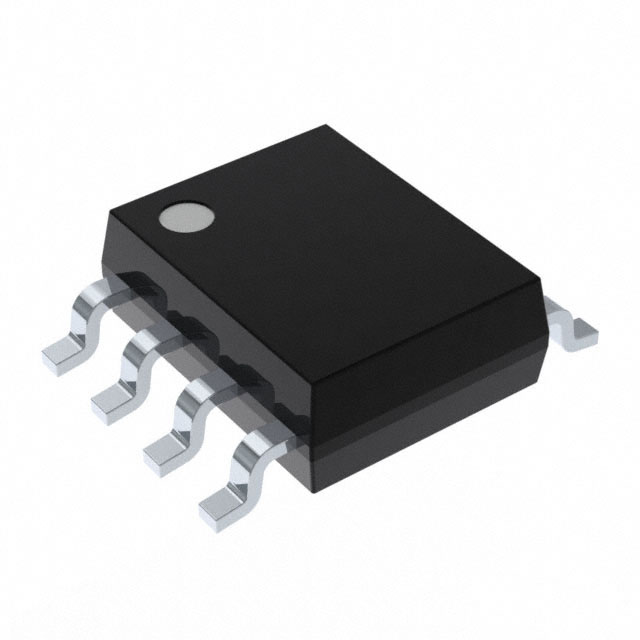

Same model may have multiple batches, images only for reference.

MAX22421FASA+
Manufacturer No:	MAX22421FASA+
Manufacturer:	Maxim Integrated / Analog Devices
SUVSysrem No:	MAX22421FASA+
Package:	Tube
Datasheet:	MAX22421FASA+
Description:	SPI Digital Isolator 3000Vrms 2 Channel 10Mbps 200kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

MAX22421FASA+ information

Product Attributes	Attribute Value
Category	Isolators
Manufacturer	Maxim Integrated / Analog Devices
Package	Tube
Description	SPI Digital Isolator 3000Vrms 2 Channel 10Mbps 200kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
Package / Case	8-SOIC (0.154", 3.90mm Width)
Mounting Type	Surface Mount
Type	SPI
Operating Temperature	-40°C ~ 125°C
Voltage - Supply	1.71V ~ 5.5V
Data Rate	10Mbps
Technology	Capacitive Coupling
Voltage - Isolation	3000Vrms
Inputs - Side 1/Side 2	1/1
Supplier Device Package	8-SOIC
Rise / Fall Time (Typ)	5ns, 5ns (Max)
Common Mode Transient Immunity (Min)	200kV/µs
Propagation Delay tpLH / tpHL (Max)	61ns, 61ns
Isolated Power	Yes
Channel Type	Unidirectional
Pulse Width Distortion (Max)	6ns
Number of Channels	2
