Home / Products / Isolators / Optoisolators / Transistor, Photovoltaic Output Optoisolators / TLP321-2BLG

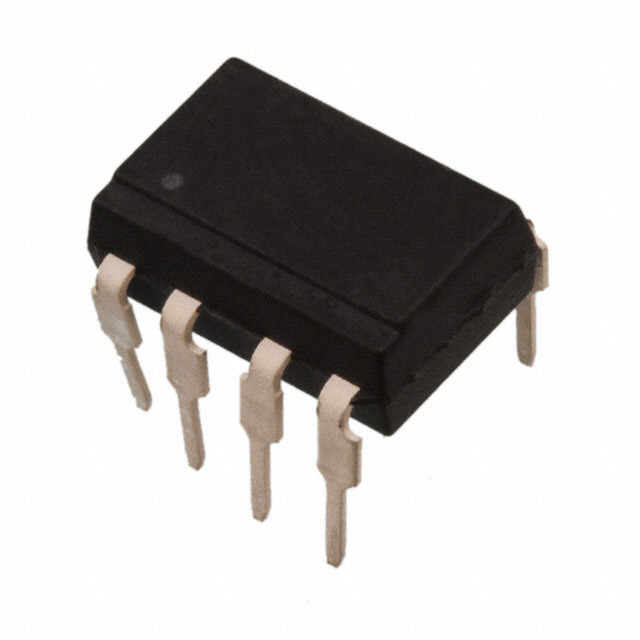

Same model may have multiple batches, images only for reference.

TLP321-2BLG
Manufacturer No: TLP321-2BLG
Manufacturer: Isocom Components
SUVSysrem No: TLP321-2BLG
Package: Tube
Datasheet: TLP321-2BLG
Description: Optoisolator Transistor Output 5300Vrms 2 Channel 8-DIP
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

TLP321-2BLG information
Product Attributes Attribute Value
Category Isolators
Manufacturer Isocom Components
Package Tube
Description Optoisolator Transistor Output 5300Vrms 2 Channel 8-DIP
Package / Case8-DIP (0.400", 10.16mm)
Output TypeTransistor
Mounting TypeThrough Hole
Operating Temperature-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)1.15V
Input TypeDC
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)200% @ 5mA
Vce Saturation (Max)400mV
Current Transfer Ratio (Max)600% @ 5mA
Supplier Device Package8-DIP
Voltage - Output (Max)80V
Turn On / Turn Off Time (Typ)3µs, 3µs
Rise / Fall Time (Typ)2µs, 3µs
Number of Channels2
Current - DC Forward (If) (Max)50 mA
