Home / Products / Connectors, Interconnects / Circular Connectors / Circular Connector Housings / 805-004-22ZB23-269AE

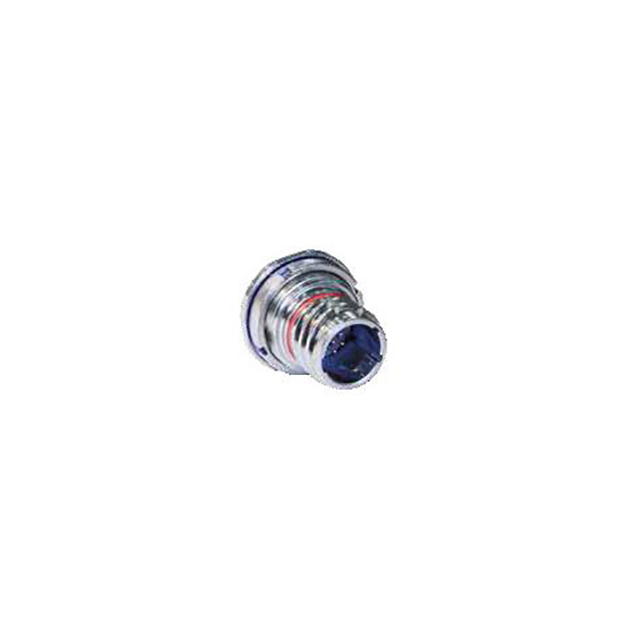

Same model may have multiple batches, images only for reference.

805-004-22ZB23-269AE
Manufacturer No: 805-004-22ZB23-269AE
Manufacturer: Glenair
SUVSysrem No: 805-004-22ZB23-269AE
Package: Retail Package
Datasheet: 805-004-22ZB23-269AE
Description: 69 Position Circular Connector Plug Housing Panel Mount
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

805-004-22ZB23-269AE information
Product Attributes Attribute Value
Category Connectors, Interconnects
Manufacturer Glenair
Package Retail Package
Description 69 Position Circular Connector Plug Housing Panel Mount
Connector TypePlug Housing
Mounting TypePanel Mount
ShieldingShielded
Number of Positions69
TypeFor Male Pins
OrientationE
Shell Size - Insert23-269
Operating Temperature-65°C ~ 175°C
Contact TypeCrimp
Fastening TypeThreaded
Ingress ProtectionEnvironment Sealed
Contact Size20
Mounting FeatureFlange
NoteContacts Not Included
Housing ColorOlive Drab
Shell MaterialStainless Steel
Shell FinishChromate over Cadmium
