MMFTC6420 Diotec Semiconductor Discrete Semiconductor Products distributor and supplier

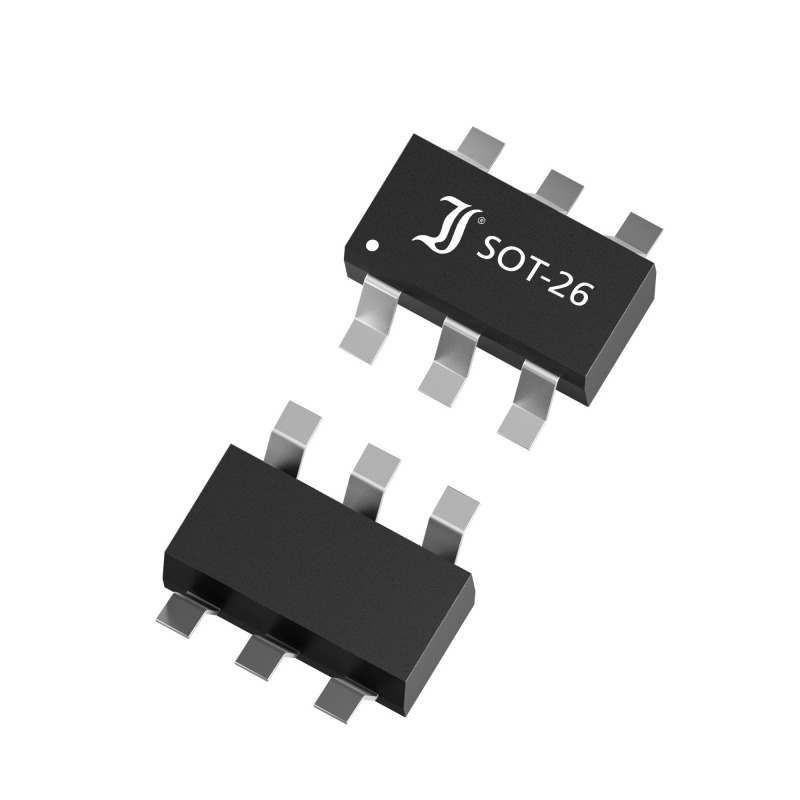

Same model may have multiple batches, images only for reference.

MMFTC6420
Manufacturer No:	MMFTC6420
Manufacturer:	Diotec Semiconductor
SUVSysrem No:	MMFTC6420
Package:	Bulk
Datasheet:	MMFTC6420
Description:	Mosfet Array 20V 3A (Ta), 2.2A (Ta) 700mW (Ta) Surface Mount SOT-26
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

MMFTC6420 information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Diotec Semiconductor
Package	Bulk
Description	Mosfet Array 20V 3A (Ta), 2.2A (Ta) 700mW (Ta) Surface Mount SOT-26
Package / Case	SOT-23-6 Thin, TSOT-23-6
Mounting Type	Surface Mount
Configuration	N and P-Channel
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
Power - Max	700mW (Ta)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3A (Ta), 2.2A (Ta)
Input Capacitance (Ciss) (Max) @ Vds	324pF @ 10V, 340pF @ 10V
Rds On (Max) @ Id, Vgs	70mOhm @ 3A, 4.5V, 125mOhm @ 2.2A, 4.5V
Gate Charge (Qg) (Max) @ Vgs	3.3nC @ 4.5V, 4nC @ 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Supplier Device Package	SOT-26
