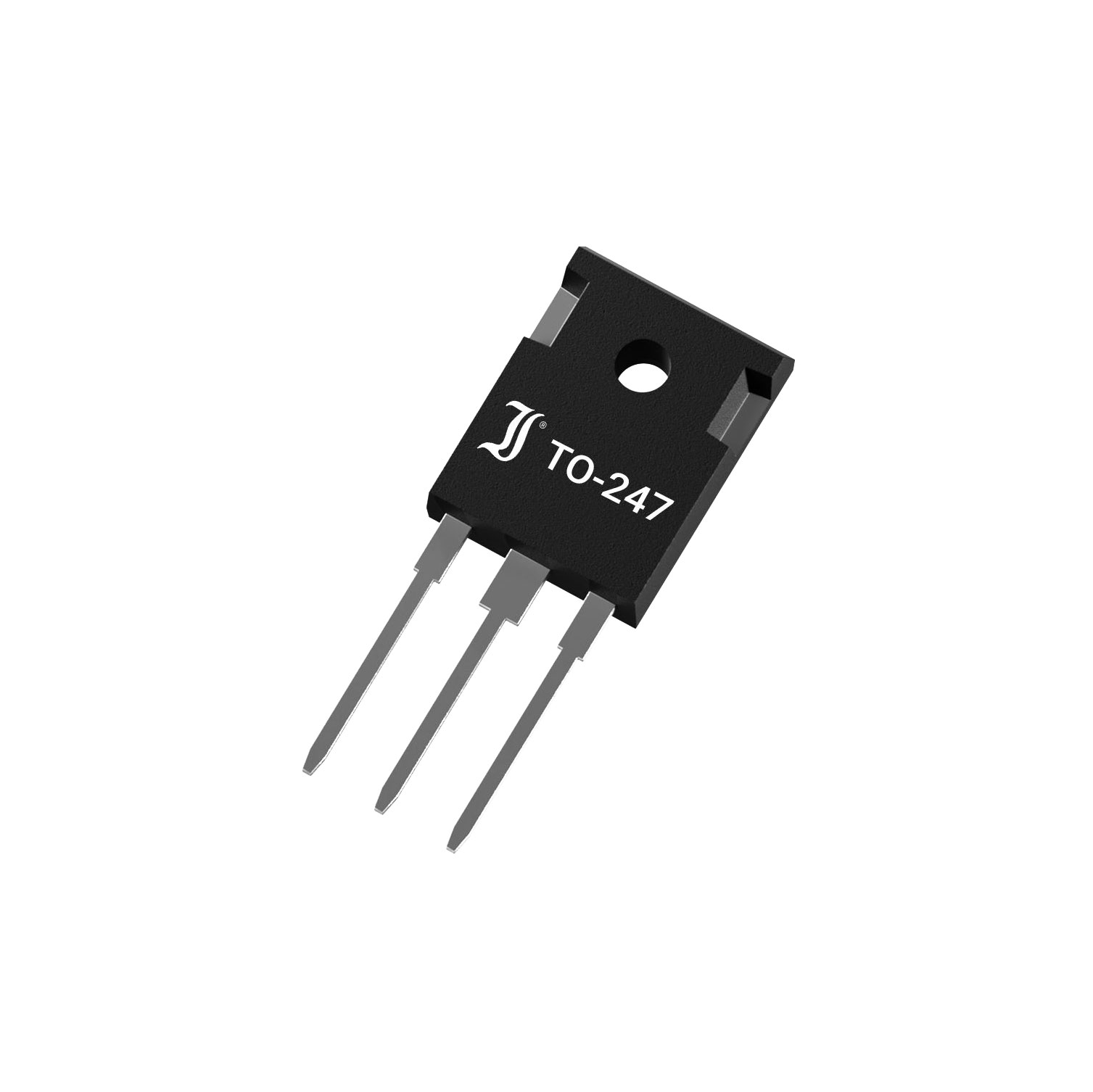

Same model may have multiple batches, images only for reference.

DIW120SIC023-AQ
Manufacturer No:	DIW120SIC023-AQ
Manufacturer:	Diotec Semiconductor
SUVSysrem No:	DIW120SIC023-AQ
Package:	Tube
Datasheet:	DIW120SIC023-AQ
Description:	N-Channel 1200 V 125A (Tc) 600W (Tc) Through Hole TO-247
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

DIW120SIC023-AQ information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Diotec Semiconductor
Package	Tube
Description	N-Channel 1200 V 125A (Tc) 600W (Tc) Through Hole TO-247
Package / Case	TO-247-3
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 175°C (TJ)
Technology	SiCFET (Silicon Carbide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	125A (Tc)
Rds On (Max) @ Id, Vgs	23mOhm @ 75A, 18V
Power Dissipation (Max)	600W (Tc)
Vgs(th) (Max) @ Id	2.9V @ 250µA
Supplier Device Package	TO-247
Grade	Automotive
Drive Voltage (Max Rds On, Min Rds On)	18V
Drain to Source Voltage (Vdss)	1200 V
Gate Charge (Qg) (Max) @ Vgs	45 nC @ 18 V
Input Capacitance (Ciss) (Max) @ Vds	6150 pF @ 1000 V
Qualification	AEC-Q101
