DI110N03PQ Diotec Semiconductor Discrete Semiconductor Products distributor and supplier

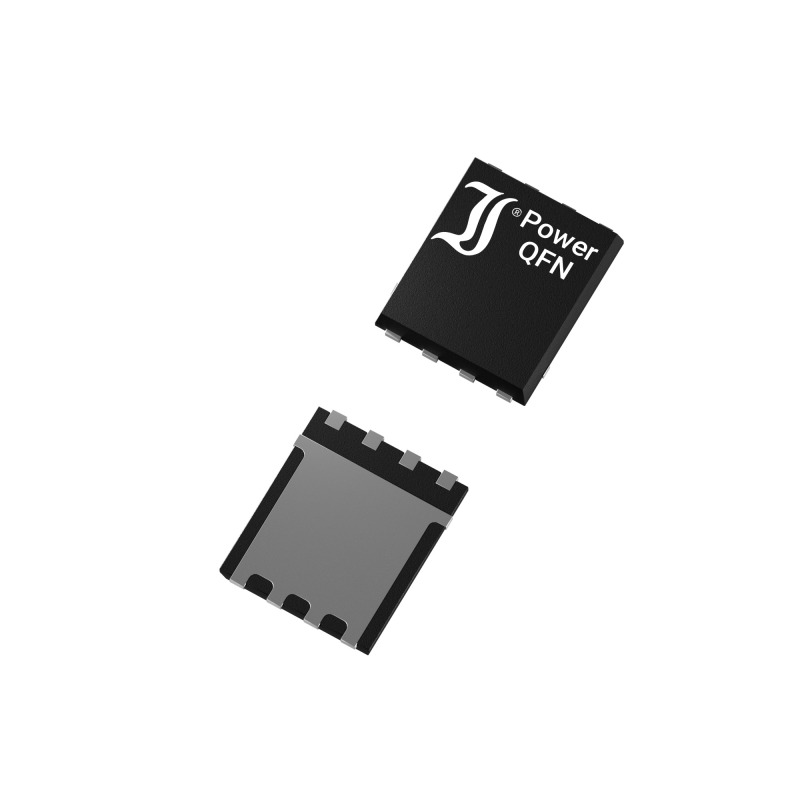

Same model may have multiple batches, images only for reference.

DI110N03PQ
Manufacturer No:	DI110N03PQ
Manufacturer:	Diotec Semiconductor
SUVSysrem No:	DI110N03PQ
Package:	Bulk
Datasheet:	DI110N03PQ
Description:	N-Channel 30 V 110A (Tc) 56W (Tc) Surface Mount 8-QFN (5x6)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

DI110N03PQ information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Diotec Semiconductor
Package	Bulk
Description	N-Channel 30 V 110A (Tc) 56W (Tc) Surface Mount 8-QFN (5x6)
Package / Case	8-PowerTDFN
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	110A (Tc)
Rds On (Max) @ Id, Vgs	2.65mOhm @ 20A, 10V
Power Dissipation (Max)	56W (Tc)
Vgs(th) (Max) @ Id	2.5V @ 250µA
Supplier Device Package	8-QFN (5x6)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	1860 pF @ 15 V

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
