TBP04P1-500-03GR CUI Devices Connectors, Interconnects distributor and supplier

Same model may have multiple batches, images only for reference.

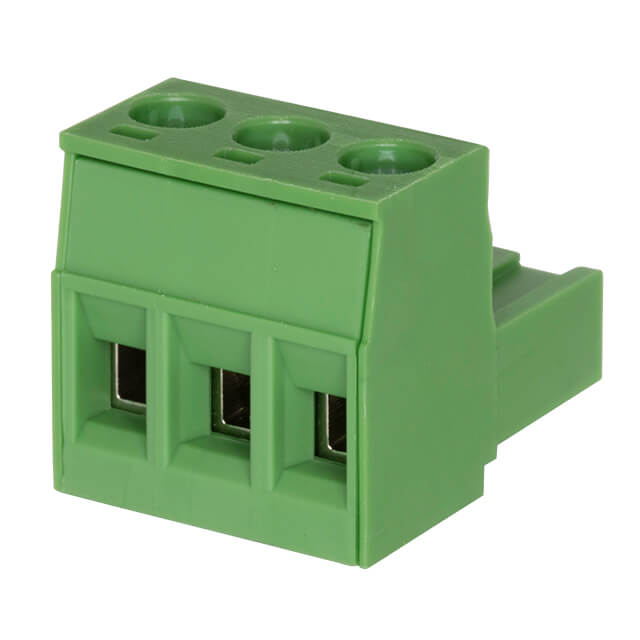

TBP04P1-500-03GR
Manufacturer No:	TBP04P1-500-03GR
Manufacturer:	CUI Devices
SUVSysrem No:	TBP04P1-500-03GR
Package:	Box
Datasheet:	TBP04P1-500-03GR
Description:	3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

TBP04P1-500-03GR information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	CUI Devices
Package	Box
Description	3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Features	Retention Latches (Non-Wire Side)
Color	Green
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Pitch	0.197" (5.00mm)
Screw Size	M3
Type	Plug, Female Sockets
Operating Temperature	-40°C ~ 105°C
Termination Style	Screw
Material Flammability Rating	UL94 V-0
Current - IEC	10A
Number of Levels	1
Wire Gauge or Range - AWG	12-28 AWG
Wire Gauge or Range - mm²	0.5-2.5mm²
Positions Per Level	3
Contact Material	Copper Alloy
Plug Wire Entry	180°
Housing Material	Polyamide (PA66), Nylon 6/6
Torque - Screw	0.5 Nm (4.4 Lb-In)
Contact Mating Finish	Nickel
Wire Strip Length	7-8mm
Insulation Height	0.713" (18.10mm)
Current - UL	15 A
Voltage - IEC	630 V
Voltage - UL	300 V

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
