CDM506-03A-FT-F775-67 CUI Devices Connectors, Interconnects distributor and supplier

Same model may have multiple batches, images only for reference.

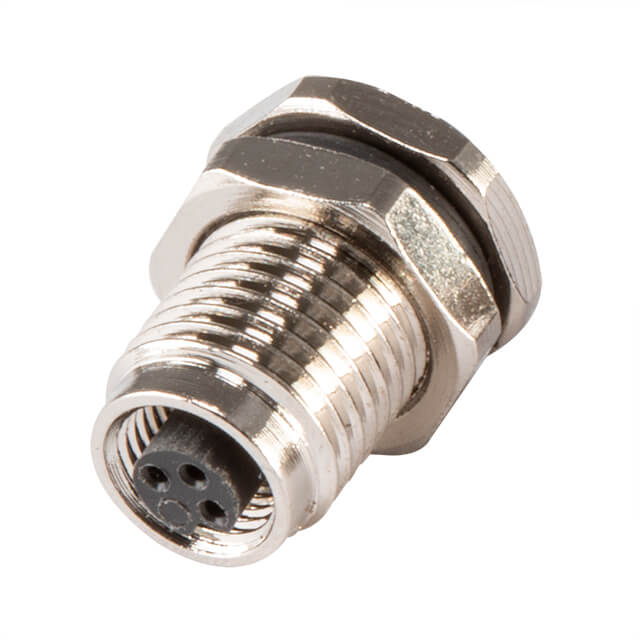

CDM506-03A-FT-F775-67
Manufacturer No:	CDM506-03A-FT-F775-67
Manufacturer:	CUI Devices
SUVSysrem No:	CDM506-03A-FT-F775-67
Package:	Box
Datasheet:	CDM506-03A-FT-F775-67
Description:	3 Position Circular Connector Receptacle, Female Sockets Solder Cup
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

CDM506-03A-FT-F775-67 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	CUI Devices
Package	Box
Description	3 Position Circular Connector Receptacle, Female Sockets Solder Cup
Connector Type	Receptacle, Female Sockets
Color	Silver
Voltage Rating	60V
Current Rating (Amps)	1A
Mounting Type	Panel Mount
Shielding	Unshielded
Number of Positions	3
Orientation	A
Shell Size - Insert	M5-3
Operating Temperature	-25°C ~ 80°C
Fastening Type	Threaded
Termination	Solder Cup
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Contact Material	Brass
Contact Finish - Mating	Gold
Shell Material	Brass
Shell Finish	Nickel
Insert Material	Polyamide (PA66), Nylon 6/6
Primary Material	Metal
