ST0543-00-N08-U Connex (Amphenol RF) RF and Wireless distributor and supplier

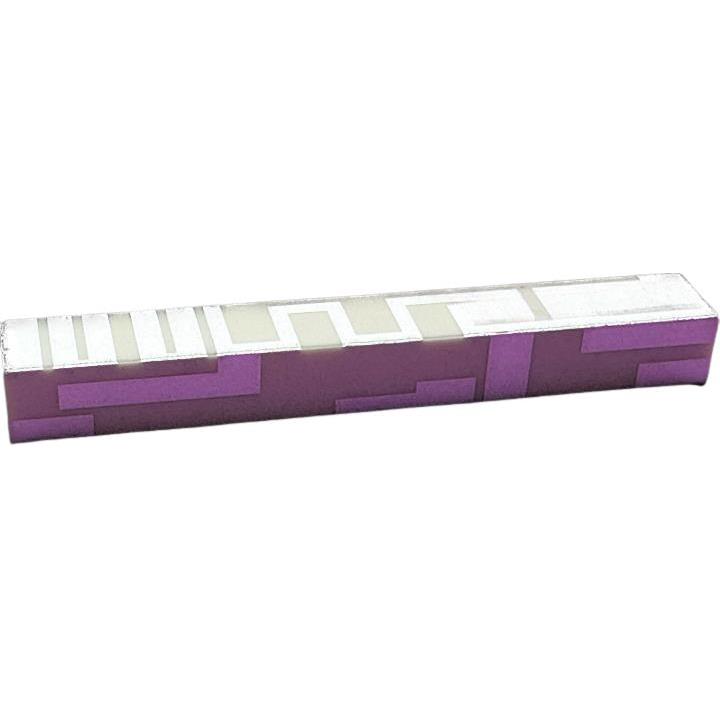

Same model may have multiple batches, images only for reference.

ST0543-00-N08-U
Manufacturer No:	ST0543-00-N08-U
Manufacturer:	Connex (Amphenol RF)
SUVSysrem No:	ST0543-00-N08-U
Package:	Box
Datasheet:	ST0543-00-N08-U
Description:	1.575GHz GPS Chip RF Antenna 1.56GHz ~ 1.59GHz 2.9dBi Solder Surface Mount
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

ST0543-00-N08-U information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	Connex (Amphenol RF)
Package	Box
Description	1.575GHz GPS Chip RF Antenna 1.56GHz ~ 1.59GHz 2.9dBi Solder Surface Mount
Mounting Type	Surface Mount
Frequency Range	1.56GHz ~ 1.59GHz
Applications	GPS
Gain	2.9dBi
Termination	Solder
Number of Bands	1
Antenna Type	Chip
Height (Max)	0.020" (0.50mm)
Return Loss	-10dB
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency (Center/Band)	1.575GHz
RF Family/Standard	Navigation
Power - Max	1 W
