ST0543-00-N02-U Connex (Amphenol RF) RF and Wireless distributor and supplier

Same model may have multiple batches, images only for reference.

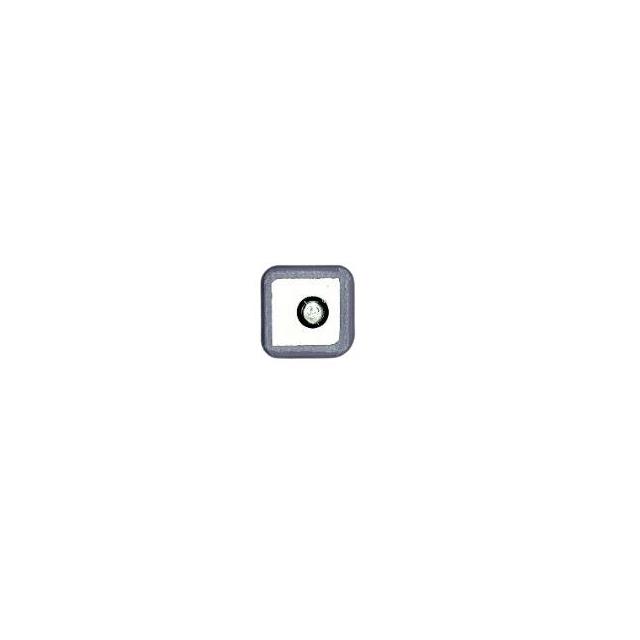

ST0543-00-N02-U
Manufacturer No:	ST0543-00-N02-U
Manufacturer:	Connex (Amphenol RF)
SUVSysrem No:	ST0543-00-N02-U
Package:	Tray
Datasheet:	ST0543-00-N02-U
Description:	1.575GHz, 1.602GHz GNSS Ceramic Patch RF Antenna 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz -5.5dBi, -2dBi Pin
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

ST0543-00-N02-U information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	Connex (Amphenol RF)
Package	Tray
Description	1.575GHz, 1.602GHz GNSS Ceramic Patch RF Antenna 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz -5.5dBi, -2dBi Pin
Frequency Range	1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz
Applications	GNSS
Gain	-5.5dBi, -2dBi
Termination	Pin
Number of Bands	2
Antenna Type	Ceramic Patch
Height (Max)	0.157" (4.00mm)
Return Loss	-10dB
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency (Center/Band)	1.575GHz, 1.602GHz
RF Family/Standard	Navigation

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
