ST0543-00-404-U Connex (Amphenol RF) RF and Wireless distributor and supplier

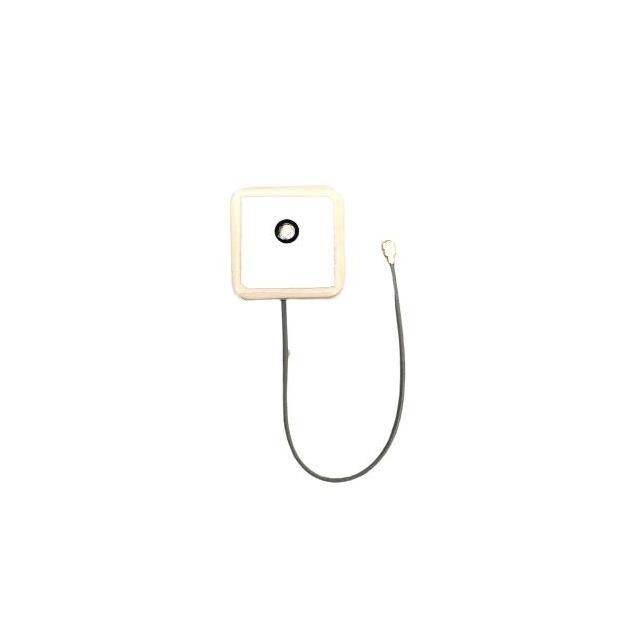

Same model may have multiple batches, images only for reference.

ST0543-00-404-U
Manufacturer No:	ST0543-00-404-U
Manufacturer:	Connex (Amphenol RF)
SUVSysrem No:	ST0543-00-404-U
Package:	Tray
Datasheet:	ST0543-00-404-U
Description:	1.575GHz, 1.602GHz GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz 0.5dBi, 2dBi IPEX MHF1
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

ST0543-00-404-U information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	Connex (Amphenol RF)
Package	Tray
Description	1.575GHz, 1.602GHz GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz 0.5dBi, 2dBi IPEX MHF1
Features	Cable - 51.5mm, LNA
Frequency Range	1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz
Applications	GLONASS, GNSS, GPS
Gain	0.5dBi, 2dBi
Termination	IPEX MHF1
Number of Bands	2
Antenna Type	Ceramic Patch
Height (Max)	0.291" (7.40mm)
Return Loss	-10dB
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency (Center/Band)	1.575GHz, 1.602GHz
RF Family/Standard	Navigation
