ST0243-00-N01-B Connex (Amphenol RF) RF and Wireless distributor and supplier

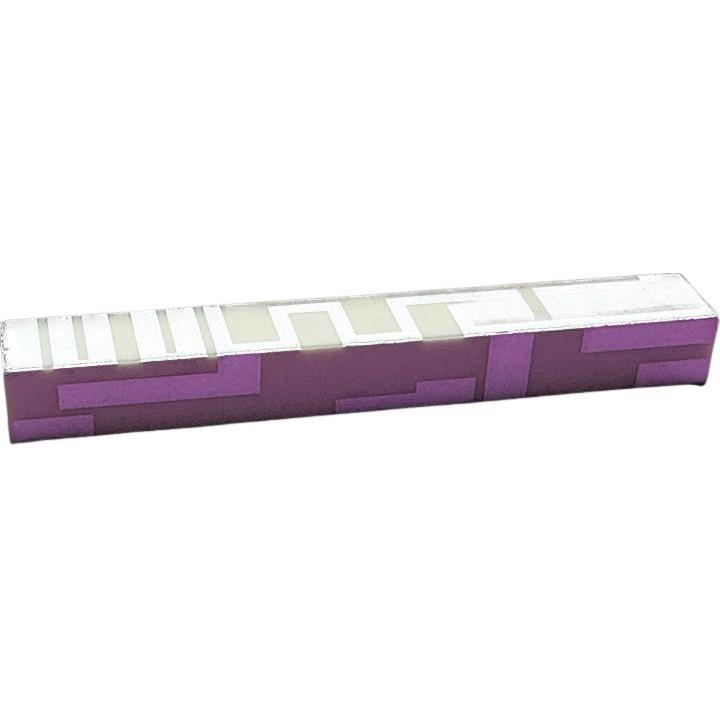

Same model may have multiple batches, images only for reference.

ST0243-00-N01-B
Manufacturer No:	ST0243-00-N01-B
Manufacturer:	Connex (Amphenol RF)
SUVSysrem No:	ST0243-00-N01-B
Package:	Tape & Reel (TR)
Datasheet:	ST0243-00-N01-B
Description:	2.45GHz, 5.487GHz Wi-Fi Chip RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz 1.6dBi, 2.3dBi Solder Surface Mount
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

ST0243-00-N01-B information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	Connex (Amphenol RF)
Package	Tape & Reel (TR)
Description	2.45GHz, 5.487GHz Wi-Fi Chip RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz 1.6dBi, 2.3dBi Solder Surface Mount
Mounting Type	Surface Mount
Frequency Range	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz
Applications	Wi-Fi
Gain	1.6dBi, 2.3dBi
Termination	Solder
Number of Bands	2
Antenna Type	Chip
Height (Max)	0.020" (0.50mm)
Return Loss	-10dB
Frequency Group	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)	2.45GHz, 5.487GHz
RF Family/Standard	WiFi
Power - Max	2 W

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
